View larger
Images are for illustrative purposes only. Please refer to data sheet for details

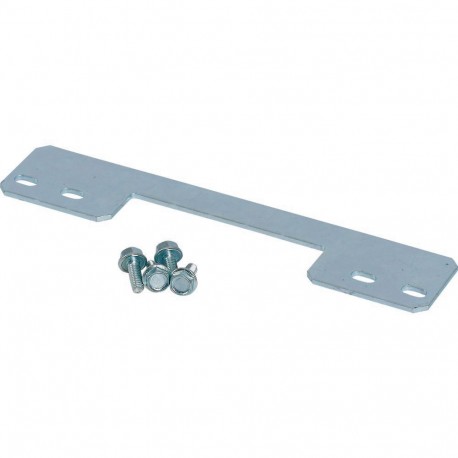

ARB-ID 002302 Y7-2302 EATON ELECTRIC Assembly bracket, for mounting frame profile, CI system
ARB-ID
002302
Y7-2302
EATON - MOELLER
10 Pcs.
Assembly bracket, for mounting frame profile, CI system
Eaton xEnergy Safety Ci LV systems LV switchgear. Assembly bracket, for mounting frame profile, CI system
Assembly bracket for mounting frame profile, galvanized steel
Automation > Component for installation (switchgear cabinet)
Insulating Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Safety Ci mounting profile fixing element
Catalog Number
002302
Model Code
ARB-ID
EAN
4015080023029
Product Length/Depth
288 mm
Product Height
68 mm
Product Width
78 mm
Product Weight
0.174 kg
Compliances
RoHS conform
Product specifications
Special features
Type
- Accessory
- CI insulated enclosure
- Distribution board assembly
Accessory/spare part type
Assembly bracket
Used with
Surface-mounted distribution board top and bottom on WW... section
Distribution boards and transport units, for the connection of them
Distribution board assembly
CI insulated enclosure
Accessory
Distribution boards and transport units, for the connection of them
Distribution board assembly
CI insulated enclosure
Accessory
Color
Other
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Metal
Model
Fastening profile
Functions
Distribution board assembly
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Fastening profile |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 78 mm |
| Height (EF000040) | 68 mm |
| Depth (EF000049) | 288 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 0 |
