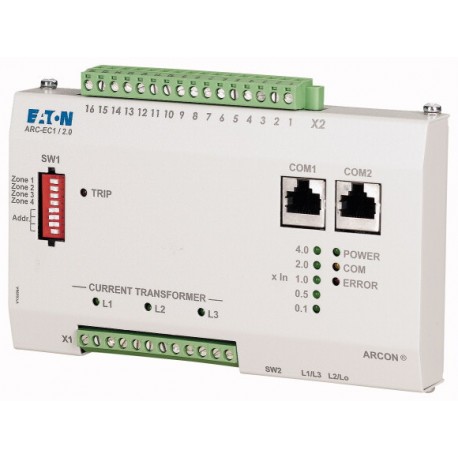

EATON - MOELLER ARC-EC1/2.0 ARC-EC1/2.0 172750 EATON ELECTRIC ARCON monitoring current slave View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ARC-EC1/2.0 172750 EATON ELECTRIC ARCON monitoring current slave

ARC-EC1/2.0

172750

EATON - MOELLER

1 Pcs.

ARCON monitoring current slave ARC-EC1/2.0 ARCON slave current monitoring Electronic evaluation unit (slave) for one current transformer set, mounting on a top-hat rail in an upper or lower sequential internal wiring duct

Automation > Arc detection system
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller ARC-EC1/2.0 172750 EATON ELECTRIC ARCON monitoring current slave is a specialized monitoring accessory designed to integrate with comprehensive arc flash protection setups. Industrial switchgear systems utilize these slave units to extend current sensing capabilities across multiple zones, ensuring rapid detection and isolation of dangerous electrical faults to protect personnel and equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Expandable (EF000119): No
  • Overcurrent protection (EF000312): No
  • Rated control supply voltage AC 50 Hz (EF003978): 0 V
  • Rated control supply voltage AC 60 Hz (EF003979): 0 V
  • Rated control supply voltage DC (EF003980): 24 V
  • Voltage type for actuating (EF008242): AC/DC
  • Mounting method (EF000003): DIN rail
  • Type of electric connection (EF003961): Screw connection
  • Number of inputs (EF000318): 2
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Circuit-breaker failure protection (ANSI 50BF) (EF016191): No
  • Height (EF000040): 70 mm
  • Width (EF000008): 135 mm
  • Depth (EF000049): 190 mm

More info

▲
ARCON slave current monitoring
Electronic evaluation unit (slave) for one current transformer set, mounting on a top-hat rail in an upper or lower sequential internal wiring duct

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Arc detection system (EC002911)
Electric engineering, automation, process control engineering / Electrical installation, device / Residual current protection system / Arc detection system ([email protected] [AFS022003])
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
24 - 24 V
Voltage type for actuating
AC/DC
Mounting method
DIN rail
Type of electric connection
Screw connection
Number of inputs
2
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Height
70 mm
Width
135 mm
Depth
190 mm
