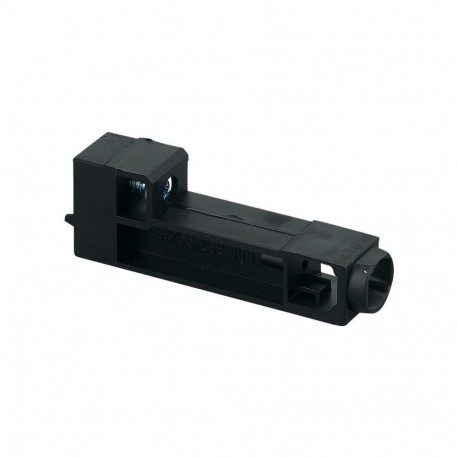

EATON - MOELLER APHL05 APHL05 143984 Y7-143984 EATON ELECTRIC Plate fixing, half, high version View larger
Images are for illustrative purposes only. Please refer to data sheet for details

APHL05 143984 Y7-143984 EATON ELECTRIC Plate fixing, half, high version

APHL05

143984

Y7-143984

EATON - MOELLER

1 Pcs.

Plate fixing, half, high version APHL05 APHL05. Cover-plate holder, half, high version The standard flush-mounting EP system is a system for surface mounting factory finished, type-tested switchgear assemblies

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller APHL05 plate fixing is a specialized structural component utilized within electrical enclosure builds to secure internal partitions and modular sub-assemblies. Such mounting accessories provide reliable mechanical support and alignment for interior frameworks in industrial distribution cabinets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 15 mm
  • Height (EF000040): 23.3 mm
  • Depth (EF000049): 73.5 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Plastic
  • Colour (EF000007): Black
  • RAL-number (EF000116): 9011

More info

▲

General specifications

Product Name
Eaton xEnergy Basic installation component
Catalog Number
143984
Model Code
APHL05
EAN
4015081405183
Product Length/Depth
73.5 mm
Product Height
23.3 mm
Product Width
15 mm
Product Weight
0.012 kg
Compliances
RoHS conform

Delivery program

Model
Mounting kit
Color
Black

Technical data - mechanical

Material
Plastic
Load capacity - max
0 kg
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm

Additional information

RAL-number
9011
