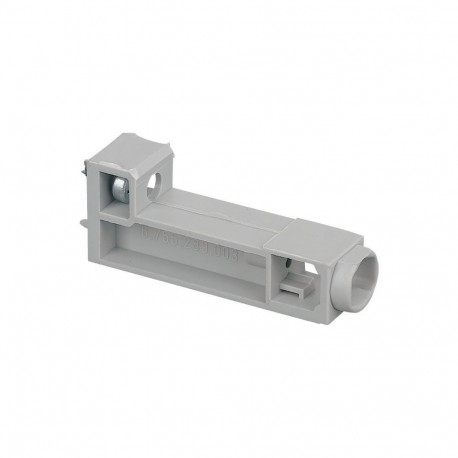

EATON - MOELLER APH05 APH05 143983 Y7-143983 EATON ELECTRIC Plate fixing, half, standard type View larger
Images are for illustrative purposes only. Please refer to data sheet for details

APH05 143983 Y7-143983 EATON ELECTRIC Plate fixing, half, standard type

APH05

143983

Y7-143983

EATON - MOELLER

1 Pcs.

Plate fixing, half, standard type APH05 APH05. Cover-plate holder, half, standard type The standard flush-mounting EP system is a system for surface mounting factory finished, type-tested switchgear assemblies

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

APH05 143983 Y7-143983 EATON ELECTRIC Plate fixing, half, standard type from Eaton Moeller is used as a mechanical fastening component to secure internal mounting plates and partitioning panels inside electrical enclosures. Fastening hardware ensures that internal sub-assemblies remain rigidly anchored against vibration and mechanical stress.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 15 mm
  • Height (EF000040): 23.3 mm
  • Depth (EF000049): 66 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Plastic
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Basic installation component
Catalog Number
143983
Model Code
APH05
EAN
4015081405176
Product Length/Depth
66 mm
Product Height
23.3 mm
Product Width
15 mm
Product Weight
0.01 kg
Compliances
RoHS conform

Delivery program

Model
Mounting kit
Color
Gray

Technical data - mechanical

Material
Plastic
Load capacity - max
0 kg
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm

Additional information

RAL-number
7035
