Basic function | Position switches | ||
Part group reference | LSE | ||
Product range | Analog electronic position switches | ||
Degree of Protection | IP66, IP67 | ||
Features | Basic device, expandable | ||
Ambient temperature | °C | -25 - +70 | |
Description | Visual status indication Q1 = analog output Q2 = diagnostics output (The diagnostics output has a 0 V signal in the event of a fault.) | ||
Approval | |||
| General | |||
Standards | IEC/EN 60947 EN 61000-4 | ||
Climatic proofing | Damp heat, constant, to IEC 60068-2-78; damp heat, cyclical, to IEC 60068-2-30 | ||
Ambient temperature | °C | -25 - +70 | |
Mounting position | As required | ||
Degree of Protection | IP66, IP67 | ||
Terminal capacities | mm2 | ||
Solid | mm2 | 1 x (0.5 - 2.5) | |
Flexible with ferrule | mm2 | 1 x (0.5 - 1.5) | |
| Power supply | |||
Rated voltage | Ue | V DC | 24 (-15 - +20 %) |
Rated operational current | Ie | A | |
24 V | I | mA | 24 |
| Contacts/switching capacity | |||
Analog output Q1 | |||
Output voltage (max. 10 mA) | V DC | 0 - 10 | |
Fault scenario | V | 0 | |
Resolution | Steps | 100 | |
Step tolerance | Steps | 1 | |
Shunt resistor, resistive load | Ω | > 1000 | |
Digital diagnostics output Q2 (switching to + pole PNP) | |||
Response threshold | V | approx. Ue | |
| mA | < 200 | ||
Fault scenario | V | 0 | |
Repetition accuracy | mm | 0.02 | |
| Mechanical variables | |||
Lifespan, mechanical | Operations | x 106 | 3 |
Contact temperature of roller head | °C | ||
Technical data for design verification | |||
Heat dissipation capacity | Pdiss | W | 0 |
Operating ambient temperature min. | °C | -25 | |
Operating ambient temperature max. | °C | 70 | |
IEC/EN 61439 design verification | |||
10.2 Strength of materials and parts | |||
10.2.2 Corrosion resistance | Meets the product standard's requirements. | ||
10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. | ||
10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. | ||
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects | Meets the product standard's requirements. | ||
10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. | ||
10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.7 Inscriptions | Meets the product standard's requirements. | ||
10.3 Degree of protection of ASSEMBLIES | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.4 Clearances and creepage distances | Meets the product standard's requirements. | ||
10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. | ||
10.8 Connections for external conductors | Is the panel builder's responsibility. | ||
10.9 Insulation properties | |||
10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. | ||
10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. | ||
10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. | ||
10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. | ||
10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. | ||
View larger

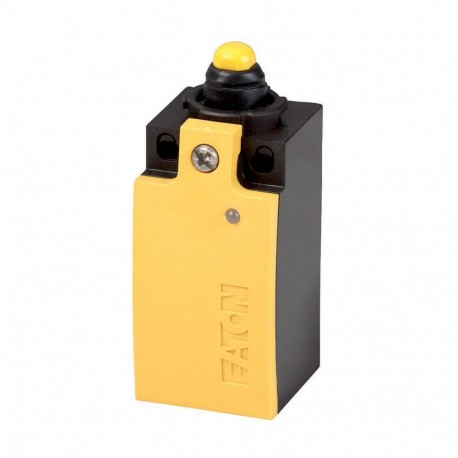

LSE-AU 274096 EATON ELECTRIC Int. Position. Elec. Analog
LSE-AU
274096
EATON - MOELLER
1 Pcs.
Automation > End switch
Position Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Analog position sensors such as the LSE-AU Eaton Moeller electric analog position switch provide continuous positional feedback for automated machinery rather than simple binary switching. Systems integrators deploy these precision components in automated control loops where exact displacement tracking is required.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Power supply Rated voltage: U e
- Rated operational current: I e
- 24 V: I
- Mechanical variables Lifespan, mechanical: Operations
- Heat dissipation capacity: P diss
- IL05208002Z (AWA1310-2160) Analog signal transmitter: >>
- Width sensor: 31 mm
- Diameter sensor: 0 mm
- Height of sensor: 61 mm
- Length of sensor: 33.5 mm
More info
▲| Sensors (EG000026) / End switch (EC000030) | |||
| Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Position switch / Position switch (Type 1) ([email protected] [AGZ382012]) | |||
Width sensor | mm | 31 | |
Diameter sensor | mm | 0 | |
Height of sensor | mm | 61 | |
Length of sensor | mm | 33.5 | |
Rated operation current Ie at AC-15, 24 V | A | 0 | |
Rated operation current Ie at AC-15, 125 V | A | 0 | |
Rated operation current Ie at AC-15, 230 V | A | 0 | |
Rated operation current Ie at DC-13, 24 V | A | 0 | |
Rated operation current Ie at DC-13, 125 V | A | 0 | |
Rated operation current Ie at DC-13, 230 V | A | 0 | |
Switching function | Slow-action switch | ||
Output electronic | Yes | ||
Forced opening | No | ||
Number of safety auxiliary contacts | 0 | ||
Number of contacts as normally closed contact | 0 | ||
Number of contacts as normally open contact | 0 | ||
Number of contacts as change-over contact | 0 | ||
Type of interface | None | ||
Type of interface for safety communication | None | ||
Housing according to norm | - | ||
Construction type housing | Cuboid | ||
Material housing | Plastic | ||
Coating housing | - | ||
Type of control element | Plunger | ||
Alignment of the control element | - | ||
Type of electric connection | - | ||
With status indication | Yes | ||
Suitable for safety functions | No | ||
Explosion safety category for gas | None | ||
Explosion safety category for dust | None | ||
Ambient temperature during operating | °C | -25 - 70 | |
Degree of protection (IP) | IP67 | ||
| Product Standards | IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking | ||
| UL File No. | E29184 | ||
| UL Category Control No. | NKCR | ||
| CSA File No. | 12528 | ||
| CSA Class No. | 3211-03 | ||
| North America Certification | UL listed, CSA certified | ||
| Degree of Protection | IEC: IP66, 67, UL/CSA Type 3R, 4X (indoor use only), 12, 13 |
