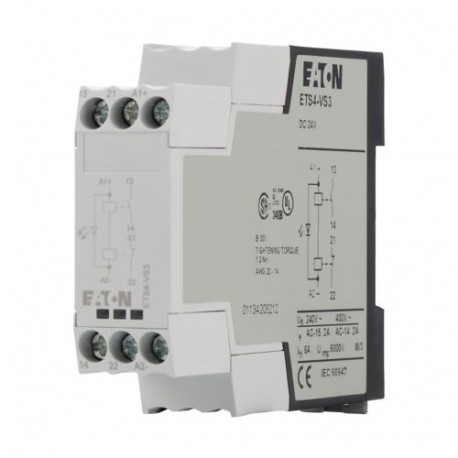

ETS4-VS3 083094 Y7-83094 EATON ELECTRIC Amplifier module, for separate mounting
ETS4-VS3
083094
Y7-83094
EATON - MOELLER
1 Pcs.
Automation > Contactor relay
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller amplifier module is an electronic interface device utilized to condition and boost control signals between sensors and primary automation hardware. Unit ETS4-VS3 supports separate mounting configurations to streamline industrial panel layouts and improve signal integrity.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage AC 50 Hz (EF003978): 0 V
- Rated control supply voltage AC 60 Hz (EF003979): 0 V
- Rated control supply voltage DC (EF003980): 24 V
- Voltage type for actuating (EF008242): DC
- Rated operation current (EF007679): 2 A
- Rated operation current Ie, 400 V (EF001378): 2 A
- Mounting method (EF000003): DIN rail
- With LED indication (EF005950): Yes
- Suitable for manual operation (EF002978): No
- Interface (EF000594): No
- Operating voltage AC 50 Hz (EF008206): 220 V
- Operating voltage AC 60 Hz (EF008207): 220 V
- Operating voltage DC (EF008208): 0 V
- Voltage type (operating voltage) (EF005294): AC
- Rated switch current (EF006706): 2 A
- Connection type auxiliary circuit (EF006820): Screw connection
More info
▲General specifications
CSA file No. 012528
IEC/EN 60947-4-1
UL 508
CSA-C22.2 No. 14-05
CE marking
IEC/EN 60947
VDE 0660
UL
CSA
UL Category Control No.: NKCR
UL File No.: E29184
UL Listed
CSA certified
Features & Functions
General
DILMP
DILL
DILK
DILMF
Ambient conditions, mechanical
Climatic environmental conditions
Terminal capacities
2 x (0.75 - 2.5) mm², solid
1 x (0.75 - 2.5) mm², flexible with ferrule
16 - 14 AWG, solid or stranded
Only use equal cross-sections.
