EATON - MOELLER AM-195/54 AM-195/54 107963 Y7-107963 EATON ELECTRIC Cover module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

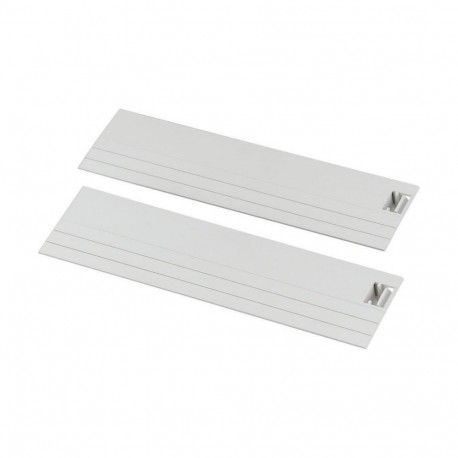

AM-195/54 107963 Y7-107963 EATON ELECTRIC Cover module

AM-195/54

107963

Y7-107963

EATON - MOELLER

15 Pcs.

Cover module AM-195/54 Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Cover module Cover modul for SASY60i cutouts with 195mm dimensioned to accommodate front of breaker, supplied in lengths=54mm

Automation > Cover strip (modular) for meter-/distribution board
Industrial Fuse Bases

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cover module provides safety insulation and physical shielding over electrical terminal blocks or busbar assemblies within switchgear panels. The Eaton Moeller AM-195/54 107963 Y7-107963 EATON ELECTRIC accessory snaps securely into position to prevent accidental contact. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Plastic
  • Surface protection (EF000139): Lacquered
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • Width (EF000008): 219 mm
  • Width in number of modular spacings (EF002950): 3
  • Height (EF000040): 59 mm

More info

▲

General specifications

Product Name
Eaton xEffect SASY 60i blanking strip
Catalog Number
107963
Model Code
AM-195/54
EAN
4015081075997
Product Length/Depth
308 mm
Product Height
59 mm
Product Width
219 mm
Product Weight
0.033 kg
Compliances
RoHS conform

Delivery program

Type
Color
Gray

Technical data - mechanical

Surface protection
Lacquered
Width in number of modular spacings
3
Material
Plastic

Additional information

Functions
Empty section cover for front panel cutouts
Spare cover
RAL-number
7035
Special features
Cover module for cutouts
Used with
60 mm system
System cover
