View larger
Images are for illustrative purposes only. Please refer to data sheet for details

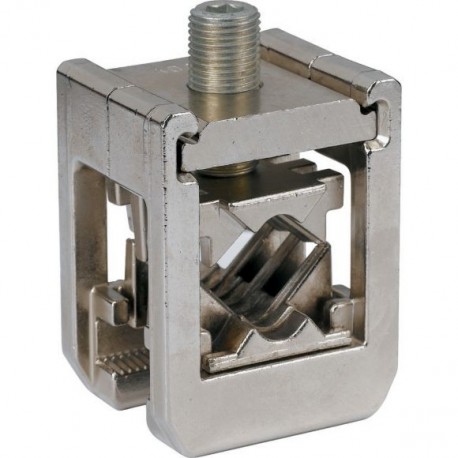

AK300 138363 Y7-138363 EATON ELECTRIC Connection terminal 95-300 mm²
AK300
138363
Y7-138363
EATON - MOELLER
1 Pcs.
Connection terminal 95-300 mm²
AK300
Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Connection terminal 95-300 mm²
Connection terminal SASY60i, width 48mm, Ie=630A, terminal capacities=95-300mm², for 30x10 busbars and double T profile, triple T profile, contact occurs via cable block
Automation > Busbar terminal
Connection Accessories for Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEffect SASY 60i busbar terminal
Catalog Number
138363
Model Code
AK300
EAN
4015081351435
Product Length/Depth
100 mm
Product Height
60 mm
Product Width
48 mm
Product Weight
0.857 kg
Compliances
RoHS conform
Delivery program
Type
Technical data - electrical
Rated operation current (Ie)
630 A
Rated operational current
630 A
Rated operational current (Ie) - max
630 A
Technical data - mechanical
Busbar thickness - min
10 mm
Busbar thickness - max
10 mm
Busbar width - min
30 mm
Busbar width - max
30 mm
Terminal capacity (conductor)
95 mm² - 300 mm²
Conductor cross section - max
300 mm²
Width clamp
48 mm
Additional information
Functions
Connections
Terminal
Terminal
Special features
Cable block is used to connect the conductor to the busbar
Suitable for
Strip conductor connection
Round conductor connection
T-rail
Round conductor connection
T-rail
Used with
Triple T profile
30 mm x 10 mm rail
Double T profile
Connection
60 mm system
30 mm x 10 mm rail
Double T profile
Connection
60 mm system
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 10 mm |
| Busbar width (EF007219) | 30 mm |
| Suitable for (EF000073) | T-rail |
| Width clamp (EF007092) | 48 mm |
| Max. conductor cross section (EF004969) | 300 mm² |
| Max. rated operation current Ie (EF007356) | 630 A |
| Suitable for round conductor connection (EF007258) | Yes |
| Suitable for sector conductor connection (EF007260) | No |
| Suitable for strip conductor connection (EF007242) | Yes |
