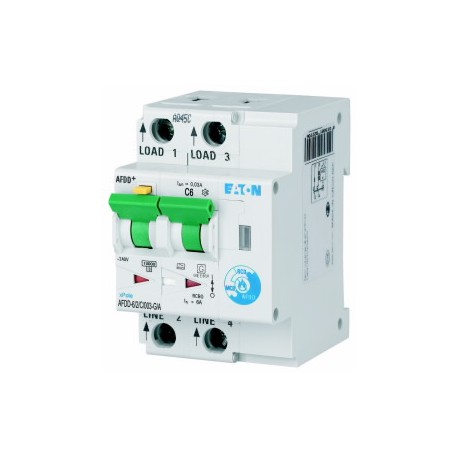

AFDD-6/2/C/003-G/A MB-300138 Y7-300138 EATON ELECTRIC Fire Protection Switch, 2p, C, 6 A, 30 mA, Type G/A
AFDD-6/2/C/003-G/A
MB-300138
Y7-300138
EATON - MOELLER
1 Pcs.
Automation > Earth leakage circuit breaker with auxiliary device
Modular Switchgear – Tertiary and Differential
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller AFDD-6/2/C/003-G/A Fire Protection Switch is an advanced safety device engineered to detect potential arc faults and interrupt vulnerable circuits before thermal ignition can take place. These components are widely implemented in critical infrastructure to provide high-level fire prevention.
Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of poles (EF001391): 2
- Rated voltage (EF000228): 230 V
- Rated current (EF000227): 6 A
- Rated fault current (EF002358): 0.03 A
- Leakage current type (EF002560): A
- Current limiting class (EF002568): 3
- Frequency (EF000034): 50 Hz
- Release characteristic (EF000889): C
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 3
- Built-in depth (EF000218): 67 mm
- Rated switch current auxiliary device (EF007680): 0 A
- Rated voltage auxiliary device (EF007683): 0 V
- Control voltage type auxiliary equipment (EF008071): AC/DC
More info
▲Supply programme
Technical data
IEC/EN 61009
Built-in IP40
