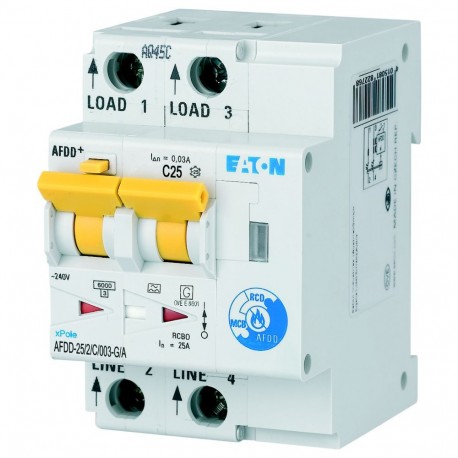

AFDD-25/2/C/003-G/A MB-300155 Y7-300155 EATON ELECTRIC Fire Protection Switch, 2p, C, 25 A, 30 mA, Type G/A
AFDD-25/2/C/003-G/A
MB-300155
Y7-300155
EATON - MOELLER
1 Pcs.
Fire Protection Switch, 2p, C, 25 A, 30 mA, Type G/A
Arc Fault Detection Device, 2p, C, 25 A, 30 mA, Type G/A
High-quality arc fault detection device (AFDD) with residual current device/miniature circuit breaker combination, line voltage-independent, contact position indicator red - green, terminal rear plug protection, tri-stable slide catch - enables removal from existing busbar system, comprehensive range of accessories suitable for subsequent installation, wide range of rated fault currents, rated operational currents up to 40 A, tripping characteristics B, C, D, rated breaking capacity 10 kA, suitable for outdoor use (on-site power and outdoor distribution board) up to -25 °C
Automation > Earth leakage circuit breaker with auxiliary device
Modular Switchgear – Tertiary and Differential
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Arc Fault Detection Device, 2p, C, 25 A, 30 mA, Type G/A
Combined differential magnethermal switch with high-quality arc protection (AFDD), independent of line voltage, red - green contact position indicator, rear clamp protection, 3-position rail fastener for removing the switch also from the busbars, wide range of accessories also for subsequent installation, wide range of rated switching currents, rated operating currents up to 40 A, switching characteristic B, C, D, nominal breaking power 10 kA, suitable for outdoor use (on-site power supply and external distribution board) down to -25 °C
Supply programme
Basic function
Fire protection switch
Poly
2-pole
Characteristic intervention curve
C
Application
xPole- Equipment for residential and functional buildings
Application
Equipment for residential and functional buildings
Rated current [IN]
25 A
Rated cut-off capacity according to IEC/EN 60898-1 [Icn]
10 kA
Nominal opening power according to IEC/EN 61009
10 kA
Rated short-circuit resistance [Icn]
10 kA
Rated differential current [IΔN]
0.03 A
Acronym
Type G/A (ÖVE E 8601)
Uncoupling
slightly delayed S...
Type of busbar system
ZV-SS
assortment
FCHD
Sensibility
pulse current sensitive
immune to current surges
pulse current resistant 3 kA
Technical data
Electric
Types conforming to
IEC/EN 62606
IEC/EN 61009
IEC/EN 61009
Current control mark
Second overprint
Rated cut-off capacity according to IEC/EN 60898-1 [Icn]
10 kA
Operating voltage limit valuesTest circuit
170 - 264 VAC
Sensibility
pulse current sensitive
Rated short-circuit resistance [Icn]
10 kA
DurationElectric [Maneuvers]
≧ 4000
Durationmechanical [Maneuvers]
≧ 20000
Mechanic
Shell mounting dimensions
45 mm
Luminaire plinth measurement
80 mm
Mounting width
54 (3 pitch units) mm
Montage
Tristable mechanical stop connector allows expansion from an existing interassembly
Degree of protection
IP20 switch
Built-in IP40
Built-in IP40
Clamps above and below
Dual-use clamps
Clamp protection
Safe for hand and finger contact, DGUV VS3, EN 50274
Distribution bar material thickness
0.8 - 2 mm
Permissible ambient temperature range
-25 - +40 °C
Allowable storage/transport temperature
-35 - +60 °C
Climate suitability
according to IEC/EN 61009
Contact location indicator
red/green
Project audits according to IEC/EN 61439
Technical data for project audits
Nominal current of use for dissipation data [IN]
25 A
Dissipation of the device, as a function of current [Pvid]
6.5 W
Service room temperature min.
-25 °C
Service room temperature max.
+40 °C
IEC/EN 61439 Project Audits
10.2 Suitability of materials and components10.2.2 Corrosion resistance
The requirements of the product standard are met.
10.2 Suitability of materials and components10.2.3.1 Resistance of the enclosure to heat
The requirements of the product standard are met.
10.2 Suitability of materials and components10.2.3.2 Resistance of insulating materials to normal heat levels
The requirements of the product standard are met.
10.2 Suitability of materials and components10.2.3.3 Resistance of insulating materials to extraordinary heat levels
The requirements of the product standard are met.
10.2 Suitability of materials and components10.2.4 Resistance to UV irradiation
The requirements of the product standard are met.
10.2 Suitability of materials and components10.2.5 Lifting
Not relevant since the entire electrical panel must be evaluated.
10.2 Suitability of materials and components10.2.6 Impact test
Not relevant since the entire electrical panel must be evaluated.
10.2 Suitability of materials and components10.2.7 Diture
The requirements of the product standard are met.
10.3 Degree of protection of enclosures
Not relevant since the entire electrical panel must be evaluated.
10.4 Air and surface dispersion routes
The requirements of the product standard are met.
10.5 Protection against electric shock
Not relevant since the entire electrical panel must be evaluated.
10.6 Recessed assembly of appliances
Not relevant since the entire electrical panel must be evaluated.
10.7 Internal circuits and connections
It is the responsibility of the manufacturer of the electrical panel.
10.8 Connections for conductors introduced from outside
It is the responsibility of the manufacturer of the electrical panel.
10.9 Insulation characteristics10.9.2 Dielectric rigidity at network frequency
It is the responsibility of the manufacturer of the electrical panel.
10.9 Insulation characteristics10.9.3 Pulse sealing voltage
It is the responsibility of the manufacturer of the electrical panel.
10.9 Insulation characteristics10.9.4 Verification of insulating material casings
It is the responsibility of the manufacturer of the electrical panel.
10.10 Heating
The calculation of overheating is the responsibility of the manufacturer of the electrical panel. Eaton provides data on equipment dissipation.
10.11 Short-circuit resistance
It is the responsibility of the manufacturer of the electrical panel. Respect the default values of the equipment.
10.12 EMC
It is the responsibility of the manufacturer of the electrical panel. Respect the default values of the equipment.
10.13 Mechanical function
For the device the requirements are met in compliance with the indications of the assembly instructions (IL).
Technical data according to ETIM 7.0
circuit breakers, fuses, devices for series/wall installation (EG000020) / residual current circuit breaker/circuit breaker supplementary (EC002695)
Technique of Ar., Elettr., Energia, Tecn. of comm., network and proc. Pipeline / Electrical and equipment systems / Residual current circuit breaker / earth leakage circuit breaker with auxiliary device ([email protected] [ADI479007])
number of poles
2
Dimensioning voltage
230 V
Dimensioning current
25 A
Rated fault current
0.03 A
fault current type
at
Energy limitation class
3
rated breaking power according to EN 61009
10 kA
nominal breaking power according to IEC 60947-2
0 kA
frequency
50 Hz
Intervention curve
C
neutral conductor with connection
no
overvoltage category
3
degree of pollution
2
width in subdivision units
3
depth of collection
67 mm
Additional devices applied by the manufacturer
other
Nominal switching current Additional device
0 A
Nominal voltage additional device
0 V
Type of control voltage Additional device
AC/DC
degree of protection (IP)
Ip20
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 2 |
| Rated voltage (EF000228) | 230 V |
| Rated current (EF000227) | 25 A |
| Rated fault current (EF002358) | 0.03 A |
| Leakage current type (EF002560) | A |
| Current limiting class (EF002568) | 3 |
| Rated short-circuit breaking capacity according to EN 61009 (EF012628) | 10 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) | 0 kA |
| Frequency (EF000034) | 50 Hz |
| Release characteristic (EF000889) | C |
| Concurrently switching neutral conductor (EF005997) | No |
| Over voltage category (EF002569) | 3 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 3 |
| Built-in depth (EF000218) | 67 mm |
| Additional equipment attached at delivery (EF008149) | Other |
| Rated switch current auxiliary device (EF007680) | 0 A |
| Rated voltage auxiliary device (EF007683) | 0 V |
| Control voltage type auxiliary equipment (EF008071) | AC/DC |
| Degree of protection (IP) (EF005474) | IP20 |
