EATON - MOELLER LS-XRLA40 LS-XRLA40 266129 Y7-266129 EATON ELECTRIC Adjustable roller lever, D 40mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LS-XRLA40 266129 Y7-266129 EATON ELECTRIC Adjustable roller lever, D 40mm

LS-XRLA40

266129

Y7-266129

EATON - MOELLER

5 Pcs.

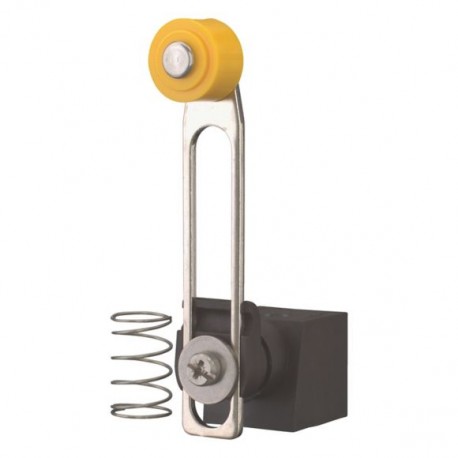

Adjustable roller lever, D=40mm LS-XRLA40 Eaton Moeller® series LS Adjustable roller lever, D=40mm Operating head for LS-Titan position switch, IEC EN 60947-5-1, high degree of protection IP66, device for world markets, modular system, easy mounting technology operating heads can be attached in any 4 directions and snapped on simple, quick and safely using the bayonet fitting.

Automation > Drive head for position switches/hinge switches
Position Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series LS Adjustable roller lever
Catalog Number
266129
Model Code
LS-XRLA40
EAN
4015082661298
Product Length/Depth
25 mm
Product Height
114 mm
Product Width
57 mm
Product Weight
0.041 kg
Compliances
CE Marked
Certifications
IEC 60947-5
EN 60947-5
UL 508
CSA Std. C22.2 No. 14
CSA File No.: 012528
IEC/EN 60947-5
CSA
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 14
UL File No.: E29184
CE
UL Category Control No.: NKCR

Features & Functions

Features
The operating head can be rotated 90° to enable adaptation to the specified approach direction

General

Product category
Adjustable roller lever
Type
Operating heads

Climatic environmental conditions

Ambient operating temperature - min
-40 °C
Ambient operating temperature - max
70 °C

Actuator

Actuator diameter
40 mm
Actuator type
Adjustable roller lever

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 266129 Sensors (EC001483)
Feature Name Feature Value
Type of control element (EF006976) Adjustable roller lever

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
