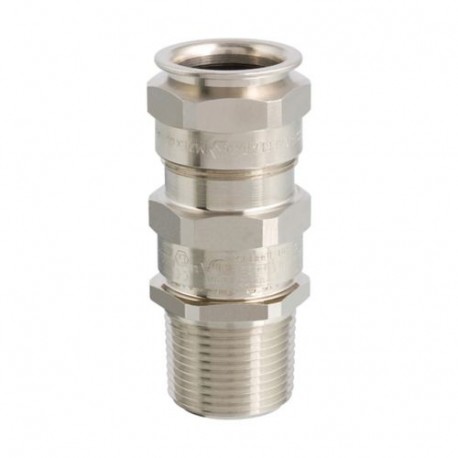

EATON - MOELLER ADE4M203NPN -4F NP ISO20 TYP7 ADE4M203NPN -4F NP ISO20 TYP7 ADE4M203NPN EATON ELECTRIC ADE 4F ISO20 No.7 Nickel Plated Brass V1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ADE4M203NPN -4F NP ISO20 TYP7 ADE4M203NPN EATON ELECTRIC ADE 4F ISO20 No.7 Nickel Plated Brass V1

ADE4M203NPN -4F NP ISO20 TYP7

ADE4M203NPN

CAP846604V1

EATON - MOELLER

1 Pcs.

ADE 4F ISO20 No.7 Nickel Plated Brass V1 Eaton ADE 4F, Armoured, Nickel-plated Brass, M20, 3 (L), 13.5-21

Cables > Cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Capri ADE-4F Cable Gland for Hazardous Area
Catalog Number
ADE4M203NPN
EAN
3589350033564
Product Length/Depth
70 mm
Product Height
33 mm
Product Width
30 mm
Product Weight
126 g
Compliances
Contact Manufacturer
Multiple listings- contact manufacturer

Product specifications

Material
Nickel plated brass
Metal
Cable sealing range
3 (L)
Color
Natural colour
Connector type
Straight
Gland size
7
Gland type
Armoured
Outer sheath (min/max)
13.5-21
Protection type
Flameproof and increased safety
Sealing type
Silicone
Thread Size
M20
Nominal thread size Metric/PG
20
Pitch thread
1.5 mm
Thread Length
15 mm
Wrench width
30 mm
Hexagon angular dimension
33 mm
Suitable for cable diameter - max
21 mm
Suitable for cable diameter - min
13.5 mm
Material quality
Brass
Surface protection
Nickel-plated
Degree of protection (IP)
IP68
Model
Straight
Type of sealing
Sealing ring
Working temperature - max
140 °C
Working temperature - min
-60 °C
For ex-zone gas
1, 2
For ex-zone dust
21, 22
Integrated function
Screened
Lamp type included
Halogen Free
Thread type
Metric
Protection, proofing and resistance
Shock Resistant
Suitable for
Armoured cable
Version
EMC
Explosion - Tested

ETIM for ADE4M203NPN Cable glands and cable entry products (EC000441)
Feature Name Feature Value
Thread type (EF001758) Metric
Nominal thread size metric/PG (EF007839) 20
Pitch thread (EF003712) 1.5 mm
Thread length (EF000368) 15 mm
Wrench width (EF000177) 30 mm
Hexagon angular dimension (EF005268) 33 mm
Suitable for cable diameter (EF005466) 13.5 mm
Material (EF002169) Metal
Material quality (EF001257) Brass
Surface protection (EF000139) Nickel-plated
Halogen free (EF000025) Yes
Glass-fibre reinforced (EF001210) No
Degree of protection (IP) (EF005474) IP68
Shock resistant (EF000084) Yes
Bend radius protection/trumpet flare (EF000734) No
With locknut (EF005049) No
Snapping in opening (EF012547) No
Model (EF000010) Straight
Multi seal area (EF005004) No
Flat cable coupling (EF004685) No
With strain relief (EF000878) No
Type of sealing (EF001217) EV009696
Separable screw gland (EF005337) No
Explosion-tested version (EF004191) Yes
For Ex-zone gas (EF005728) 1, 2
For Ex-zone dust (EF008404) 21, 22
For armoured cable (EF012184) No
EMC-version (EF001062) Yes
Screened (EF000881) Yes
Pressure-compensating (EF024919) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
