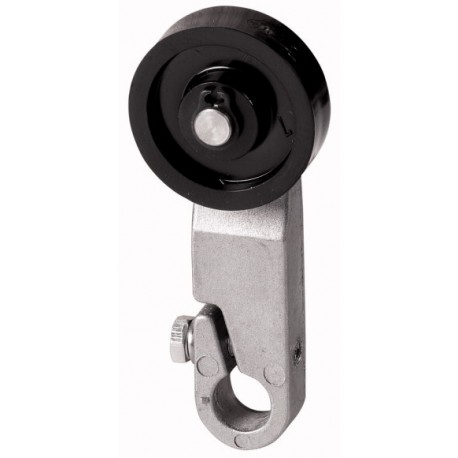

EATON - MOELLER HR520 HR520 052852 EATON ELECTRIC Actuating roller lever View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HR520 052852 EATON ELECTRIC Actuating roller lever

HR520

052852

-

EATON - MOELLER

1 Pcs.

Actuating roller lever Drive head; Rotary lever; D=50 mm; For AT4 Actuating roller lever, AT4, 50 mm, l 50 mm, For use with R-AT4

Automation > Drive head for position switches/hinge switches
Position Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number HR520 is an actuating rotary roller lever configured as a replacement drive head for industrial modular limit switches. Rotary lever actuators are commonly installed on conveyor systems and moving machinery elements to sense angular position and operational limits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: HR520
  • Catalogue code: 052852
  • Catalogue title: HR520 052852 EATON ELECTRIC Actuating roller lever
  • Product description: Actuating roller lever, AT4, 50 mm, l 50 mm, For use with R-AT4 Operating head for AT4, IEC EN 60947-5-1, device for world markets, modular system, also for use in safety circuits Delivery program Basic function Componen
  • Manufacturer summary: Actuating roller lever Drive head; Rotary lever; D=50 mm; For AT4 Actuating roller lever, AT4, 50 mm, l 50 mm, For use with R-AT4

More info

▲
Actuating roller lever, AT4, 50 mm, l 50 mm, For use with R-AT4
Operating head for AT4, IEC EN 60947-5-1, device for world markets, modular system, also for use in safety circuits

Delivery program

Basic function
Components
Part group reference
AT4
Product range
Actuators
Function
actuating roller lever
Diameter [⌀]
50 mm
Description
For adding R-AT4 rotary drive
Lever length [l]
50 mm
For use with
R-AT4

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Sensors (EG000026) / Drive head for position switches/hinge switches (EC001483)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Position switch / Drive head for position switches ([email protected] [BAA083012])
Type of control element
Rotary lever
