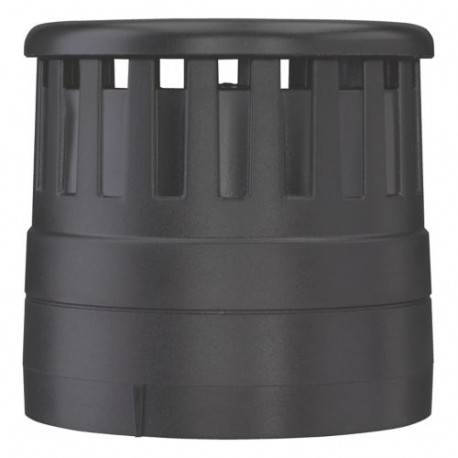

EATON - MOELLER SL7-AP24-E SL7-AP24-E 171284 Y7-171284 EATON ELECTRIC Acoustic module 24 V continuous or pulsed tone external actuation View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-AP24-E 171284 Y7-171284 EATON ELECTRIC Acoustic module 24 V continuous or pulsed tone external actuation

SL7-AP24-E

171284

Y7-171284

EATON - MOELLER

1 Pcs.

Acoustic module;24 V;continuous or pulsed tone;external actuation SL7-AP24-E Eaton Moeller® series SL7 Acoustic module;24 V;continuous or pulsed tone;external actuation Acoustic module, 24 V AC/DC AC/DC, continuous or pulsed tone, external actuation, sound pressure 100 db, adjustable with internal potentiometer, f = 2.8kHz, IP66

Automation > Acoustic module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Acoustic module
Catalog Number
171284
Model Code
SL7-AP24-E
EAN
4015081678297
Product Length/Depth
73 mm
Product Height
71 mm
Product Width
73 mm
Product Weight
0.101 kg
Compliances
CE Marked
Certifications
CSA Certified
UL Listed
UL 508
cULus Listed
CSA Std. C22.2 No. 14-10
CSA Std. C22.2 No. 94-91
CSA Class No. NKCR7
UL Listed file E29184
IEC Rated
UL
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
UL report applies to both US and Canada
CSA Class No.: NKCR7
UL File No.: E29184
UL Category Control No.: NKCR
IEC/EN 60529
IEC/EN 60947-5-1
CE
Certified by UL for use in Canada
Catalog Notes
0

Features & Functions

Color
Black
Features
Sound pressure adjustable to a minimum of 88 dB
Functions
Continuous tone/pulse tone
Number of modules
2

General

Accessories
Internal potentiometer
Alarm type
Tone adjustable
2 types of sound
Can be externally actuated
Pulsed tone
Continuous tone
Connection to SmartWire-DT
No
Current consumption
0.092 A, at 24 V AC/DC
Degree of protection
NEMA 13
IP66
Frequency rating
2800 Hz
Loudness
100 dB
Can be adjusted with built-in potentiometer
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting position
As required
Place only at the highest position on a pole
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Acoustic module
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational current (Ie) - max
92 A
Rated operational voltage (Ue) at AC - min
24 V
Rated operational voltage (Ue) at AC - max
24 V
Rated operational voltage (Ue) at DC - min
24 V
Rated operational voltage (Ue) at DC - max
24 V

ETIM for 171284 Low-voltage industrial controls and switchgear (EC001261)
Feature Name Feature Value
Function (EF000030) Continuous tone/pulse tone
Outer diameter (EF000015) 73 mm
Colour (EF000007) Black
Operating voltage AC 50 Hz (EF008206) 24 V
Operating voltage AC 60 Hz (EF008207) 24 V
Operating voltage DC (EF008208) 24 V
Voltage type (EF000187) AC/DC
Tone adjustable (EF005920) Yes
Degree of protection (IP) (EF005474) IP66
Degree of protection (NEMA) (EF011959) 13
Loudness (EF000144) 100 dB

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
