View larger
Images are for illustrative purposes only. Please refer to data sheet for details

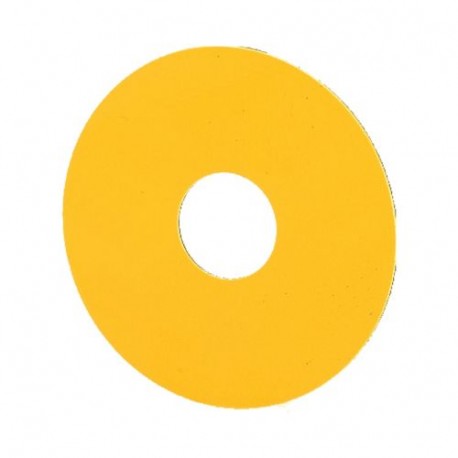

M22-XBK-* 231762 Y7-231762 EATON ELECTRIC Label, emergency switching off, D 60mm, yellow, with non-standard ..
M22-XBK-*
231762
Y7-231762
EATON - MOELLER
1 Pcs.
Label, emergency switching off, D=60mm, yellow, with non-standard inscription
M22-XBK-*
Eaton Moeller® series M22 Label, emergency switching off, D=60mm, yellow, with non-standard inscription
Emergency-Stop label, Product range: Accessories, Connection to SmartWire-DT: no
Automation > Text plate for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Emergency-Stop label
Catalog Number
231762
Model Code
M22-XBK-*
Product Length/Depth
60 mm
Product Height
1 mm
Product Width
60 mm
Product Weight
0.003 kg
Certifications
UL/CSA certification not required
DNV
GL
LR
DNV
GL
LR
Features & Functions
Color
Yellow
Inscription
None
Individual inscription possible, using the Label Editor
Individual inscription possible, using the Label Editor
Language
Other
RAL-number
1004
Shape
Round
General
Degree of protection
IP66
Product Category
Accessories
Size
60 x 60 mm
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Communication
Connection to SmartWire-DT
No
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Literal imprint (EF015918) | None |
| Language of the imprint (EF015922) | Other |
| Imprint ISO symbols (EF006094) | None |
| Colour (EF000007) | Yellow |
| Shape (EF000051) | Round |
| Width (EF000008) | 60 mm |
| Height (EF000040) | 1 mm |
| Outer diameter (EF000015) | 60 mm |
