View larger
Images are for illustrative purposes only. Please refer to data sheet for details

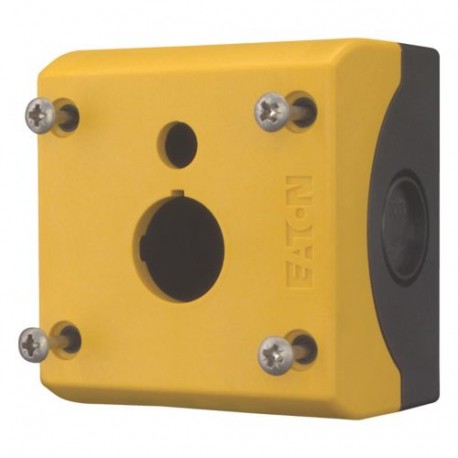

M22-IY1-XPV60 167798 Y7-167798 EATON ELECTRIC Surface mounting enclosure, 1 mounting location, yellow cover,..
M22-IY1-XPV60
167798
Y7-167798
EATON - MOELLER
1 Pcs.
Surface mounting enclosure, 1 mounting location, yellow cover, for illuminated ring
M22-IY1-XPV60
Eaton Moeller® series M22 Surface mounting enclosure, 1 mounting location, yellow cover, for illuminated ring
Surface mounting enclosure, Housing: Insulated material, With high-grade steel screws, With additional cable entry in front for M22-XPV60… illuminated ring, Number of locations: 1, Cable entry: rear: 2 x M16, at top: 1 x M20, lateral: 2 x M20/M25 (1 x each side), Degree of Protection: IP66, IP67, IP69K, Color RAL Value: RAL 1004, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 1 x 22.5, For use with: Controlled stop/emergency-stop buttons
Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Surface mounting enclosure
Catalog Number
167798
Model Code
M22-IY1-XPV60
EAN
4015081643752
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
80 mm
Product Weight
0.157 kg
Certifications
CSA Class No.: 3211-03
CSA file No. 012528
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
UL Listed
CSA certified
CSA file No. 012528
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
UL Listed
CSA certified
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 1 |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material (EF001596) | Plastic |
| Housing material quality (EF024143) | Other |
| Diameter openings (EF000243) | 22.5 mm |
| Colour housing cover (EF001373) | Yellow |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | 4X |
| Width (EF000008) | 80 mm |
| Height (EF000040) | 30 mm |
| Depth (EF000049) | 70 mm |
