View larger
Images are for illustrative purposes only. Please refer to data sheet for details

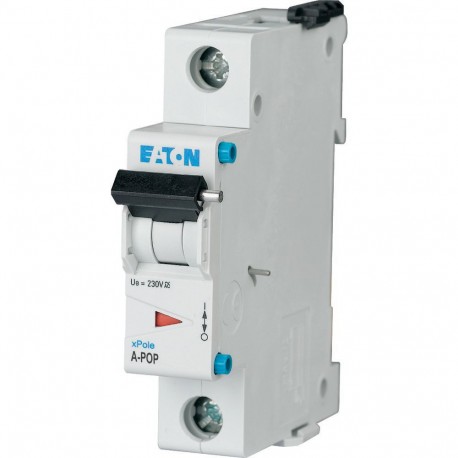

A-POP 173574 Y7-173574 EATON ELECTRIC POP protection device, 1 pole, 230 V AC, 50 Hz
A-POP
173574
Y7-173574
EATON - MOELLER
1 Pcs.
POP protection device, 1 pole, 230 V AC, 50 Hz
A-POP
Use as per EN 50550, contact position display red-green, ON-OFF function with switch-grip
Automation > Auxiliary device for distribution board devices
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Distribution parts
Catalog Number
173574
Model Code
A-POP
EAN
4015081699810
Product Length/Depth
85.5 mm
Product Height
76 mm
Product Width
25 mm
Product Weight
0.088 kg
Compliances
RoHS conform
Product specifications
Additional equipment required
Monitoring unit
Assembly width
1 TE
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
1
Number of poles at main contact unit - max
4
Number of switches (fault signal)
0
Voltage type
AC
Functions
Other function
Device fitting
Earth leakage circuit breaker and miniature circuit breaker (MCB)
Rated operational voltage (Ue) - max
230 V
Rated switch current
0 A
Suitable for current of main contact unit - max
63 A
| Feature Name | Feature Value |
|---|---|
| Device fitting (EF007826) | Earth leakage circuit breaker and miniature circuit breaker (MCB) |
| Function (EF000030) | Other |
| Width in number of modular spacings (EF002950) | 1 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of fault-signal switches (EF007613) | 0 |
| Rated switch current (EF006706) | 0 A |
| Rated voltage (EF000228) | 230 V |
| Voltage type (EF000187) | AC |
| With auto test for earth leakage function (EF008727) | No |
| Suitable for max. number of poles main contact unit (total) (EF008729) | 4 |
| Suitable for max. current main contact unit (EF008730) | 63 A |
