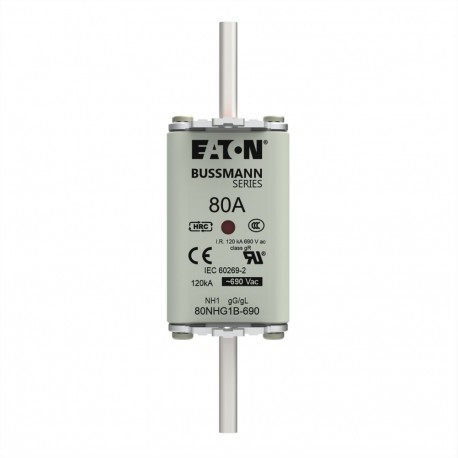

NH FUSE 80A 690V gG SIZE 1 80NHG1B-690 EATON ELECTRIC Fuse-link, LV, 100 A, AC 690V, NH1, gL/gG, IEC, dual i..
NH FUSE 80A 690V gG SIZE 1
80NHG1B690
80NHG1B-690
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Industrial power distribution grids rely on components such as the Eaton Moeller NH FUSE 80A 690V gG SIZE 1 fuse-link to clear electrical faults safely. These robust low-voltage fuses provide reliable cable and equipment safeguarding in commercial and heavy-duty installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH1
- Voltage type (EF000187): AC
- Rated current (EF000227): 80 A
- Rated voltage AC (EF007682): 690 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 7.7 W
More info
▲General specifications
CE Marked
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
