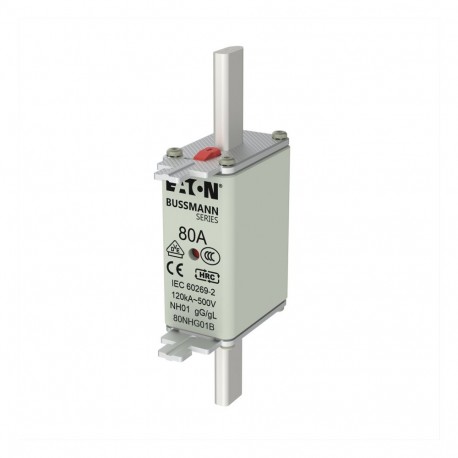

EATON - MOELLER NH FUSE 80A 500V GG/GL SIZE 01 NH FUSE 80A 500V GG/GL SIZE 01 80NHG01B EATON ELECTRIC Fuse-link, LV, 80 A, AC 500 V, NH01, gL/gG, IEC, dual.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 80A 500V GG/GL SIZE 01 80NHG01B EATON ELECTRIC Fuse-link, LV, 80 A, AC 500 V, NH01, gL/gG, IEC, dual..

NH FUSE 80A 500V GG/GL SIZE 01

80NHG01B

80NHG01B

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 80 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 80A 500V GG/GL SIZE 01 Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 80A, 120 kAIC, Combination fuse status indicator, Fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The NH FUSE 80A 500V GG/GL SIZE 01 by Eaton Moeller is an NH FUSE 80A 500V GG/GL SIZE 01 80NHG01B EATON ELECTRIC Fuse-link, LV, 80 A, AC 500 V, NH01, gL/gG, IEC, dual.. designed to interrupt destructive short-circuit and overload currents within electrical distribution networks. These cartridge-style protective devices are deployed extensively in industrial control panels to isolate faults and protect connected electrical components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH01
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 80 A
  • Rated voltage AC (EF007682): 500 V
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
80NHG01B
EAN
5027590490849
UPC
051712625982
Product Length/Depth
135 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
270.667 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
80 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH01
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch 170H0235
