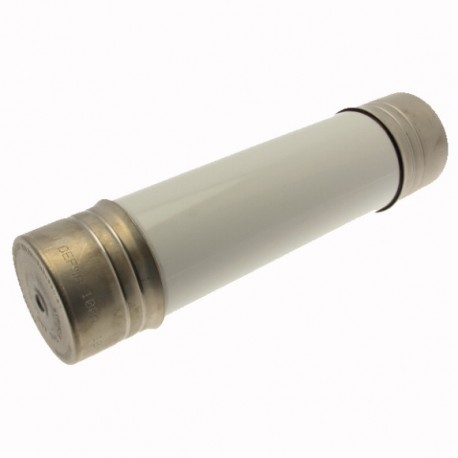

EATON - MOELLER 7.2KV 80AMP 2.5" OIL FUSE 7.2KV 80AMP 2.5" OIL FUSE 7.2OEFMA80 7-2OEFMA80 EATON ELECTRIC Oil fuse-link, medium voltage, 80 A, AC 7.2 k.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 80AMP 2.5" OIL FUSE 7.2OEFMA80 7-2OEFMA80 EATON ELECTRIC Oil fuse-link, medium voltage, 80 A, AC 7.2 k..

7.2KV 80AMP 2.5" OIL FUSE

72OEFMA80

7-2OEFMA80

EATON - MOELLER

3 Pcs.

Oil fuse-link, medium voltage, 80 A, AC 7.2 kV, BS2692 F01, 254 x 63.5 mm, back-up, BS, IEC, ESI, with striker 7.2KV 80AMP 2.5" OIL FUSE Fuse, Oil fuse-link, medium voltage, 80 A, AC 7.2 kV, BS2692 F01, 254 x 63.5 mm, back-up, BS, IEC, ESI, with striker, cylindrical, oil-tight, protection of primary side transformer, and oil-filled fuse switch combination unit, BS2692-1, IEC 60282-1, ESI 12-8, Breaking Capacity 45 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Oil fuse-link, medium voltage hardware such as the Eaton Moeller 7.2KV 80AMP 2.5" OIL FUSE provides specialized circuit isolation within oil-filled electrical switchgear. These fuses interrupt abnormal currents safely to preserve the integrity of distribution transformers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 80 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 45 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 254 mm
  • Diameter (EF000551): 63.5 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Oil

More info

▲
Oil fuse-link, medium voltage, 80 A, AC 7.2 kV, 45 kA, BS2692 F01, 254 x 63.5 mm, back-up, BS, IEC, ESI, with striker, oil-tight
Fuse, Oil fuse-link, medium voltage, 80 A, AC 7.2 kV, BS2692 F01, 254 x 63.5 mm, back-up, BS, IEC, ESI, with striker, cylindrical, oil-tight, protection of primary side transformer, and oil-filled fuse switch combination unit, BS2692-1, IEC 60282-1, ESI 12-8, Breaking Capacity 45 kA

Delivery program

Product range
Fuse
Basic function
Oil fuse-link
Field of application
medium voltage
Rated current [I]
80 A
Rated voltage
AC 7.2 kV
Construction size
BS2692 F01
Size
254 x 63.5 mm
Utilization category
back-up
Status indicator
with striker
Description
oil-tight
Breaking Capacity
45 kA
usable for size/applications
protection of primary side transformer, and oil-filled fuse switch combination unit
Standard/Approval
BS
IEC
ESI
Shape
cylindrical
Standards/Regulations
BS2692-1
IEC 60282-1
ESI 12-8

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
80 A
Rated voltage
7.2 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
45 kA
Utilization category
Other
Application
Primary side transformer protection
Length
254 mm
Diameter
63.5 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Oil
