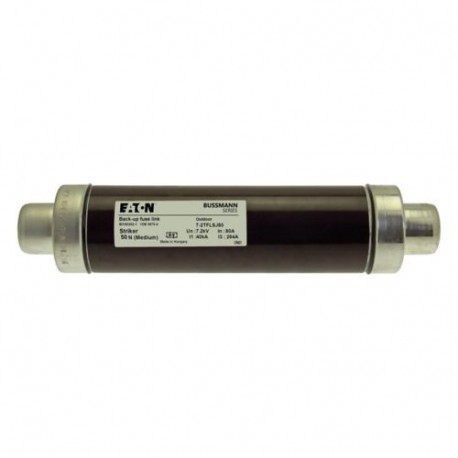

EATON - MOELLER 7.2KV 80Amp 3" 'J' DIN Fuse 7.2KV 80Amp 3" 'J' DIN Fuse 7.2TFLSJ80 7-2TFLSJ80 EATON ELECTRIC cartridge fuse, MT, 80 A, AC 7.2 kV, 3", 76.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 80Amp 3" 'J' DIN Fuse 7.2TFLSJ80 7-2TFLSJ80 EATON ELECTRIC cartridge fuse, MT, 80 A, AC 7.2 kV, 3", 76..

7.2KV 80Amp 3" 'J' DIN Fuse

72TFLSJ80

7-2TFLSJ80

EATON - MOELLER

3 Pcs.

cartridge fuse, MT, 80 A, AC 7.2 kV, 3", 76 x 292 mm, Back-up, DIN, with striker 7.2KV 80Amp 3" 'J' DIN Fuse 7.2KV 80Amp 3" 'J' DIN Fuse - Fuse-link, 80 A, AC 7.2 kV, 40 kA, 3", 76 x 292 mm, back-up, DIN, with striker Fuse, Fuse-link, medium voltage, 80 A, AC 7.2 kV, 3z, 76 x 292 mm, Back-up, DIN, with striker, transformer protection, indoor or outdoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller 7.2KV 80Amp 3" 'J' DIN Fuse is a medium voltage cartridge fuse built to DIN standards for primary transformer protection in electrical distribution systems. Such protective links ensure dependable isolation during high-energy short-circuit events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 80 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 40 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 292 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
7.2TFLSJ80
EAN
5027590488426
UPC
051712185998
Product Length/Depth
292 mm
Product Height
76 mm
Product Width
76 mm
Product Weight
3100 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1

Electrical data

Amperage Rating
80 A
Voltage rating
7.2 kV
Voltage type
AC
Breaking capacity
40 kA
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Resistance
61 Ohms
Watt losses
54 W

Product specifications

Fuse indicator
With Striker
Construction size
76 x 292 mm
Standard
DIN
Standard
DIN
Mounting method
Clip-in

Compatible fuse clip

Used with
270303 Fuse clip
A3354730 Fuse clip

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
