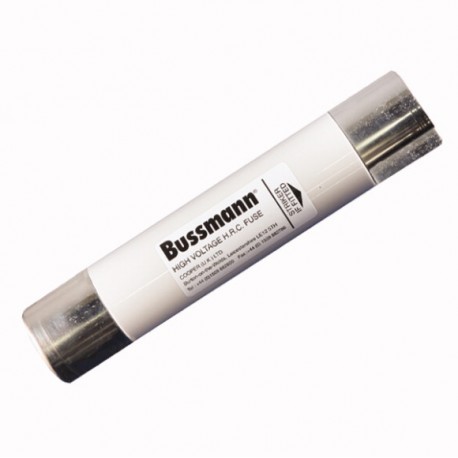

EATON - MOELLER 7.2KV 6.3Amp 2" 'O' Air Fuse 7.2KV 6.3Amp 2" 'O' Air Fuse 7.2ADFHO6.3 7-2ADFHO6-3 EATON ELECTRIC Air fuse-link, medium voltage, 6.3 A, AC.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 6.3Amp 2" 'O' Air Fuse 7.2ADFHO6.3 7-2ADFHO6-3 EATON ELECTRIC Air fuse-link, medium voltage, 6.3 A, AC..

7.2KV 6.3Amp 2" 'O' Air Fuse

7.2ADFHO6.3

7-2ADFHO6-3

EATON - MOELLER

3 Pcs.

Air fuse-link, medium voltage, 6.3 A, AC 7.2 kV, 336 x 50.8 mm, back-up, BS, with striker 7.2KV 6.3Amp 2" 'O' Air Fuse 7.2KV 6.3Amp 2" 'O' Air Fuse - Air fuse-link, medium voltage, 6.3 A, AC 7.2 kV, 20 kA, 336 x 50.8 mm, back-up, BS, with striker Fuse, Air fuse-link, medium voltage, 6.3 A, AC 7.2 kV, 336 x 50.8 mm, back-up, BS, with striker, cylindrical, offset bolted tags, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS2962-1, Breaking Capacity 20 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number 7.2KV 6.3Amp 2" 'O' Air Fuse functions as an air fuse-link, medium voltage designed to protect primary transformer circuits from abnormal electrical loads. This component helps safeguard vital substation assets from sudden fault currents.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 6.3 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 20 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 254 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Air fuse-link, medium voltage, 6.3 A, AC 7.2 kV, 20 kA, 336 x 50.8 mm, back-up, BS, with striker
Fuse, Air fuse-link, medium voltage, 6.3 A, AC 7.2 kV, 336 x 50.8 mm, back-up, BS, with striker, cylindrical, offset bolted tags, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS2962-1, Breaking Capacity 20 kA

Delivery program

Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
6.3 A
Rated voltage
AC 7.2 kV
Size
336 x 50.8 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
20 kA
usable for size/applications
protection of primary side transformers
used in fuse switch combination units, fuse bases and fuse switches
Standard/Approval
BS
Shape
cylindrical
offset bolted tags
Standards/Regulations
BS2962-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
6.3 A
Rated voltage
7.2 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
20 kA
Utilization category
Other
Application
Primary side transformer protection
Length
254 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air
