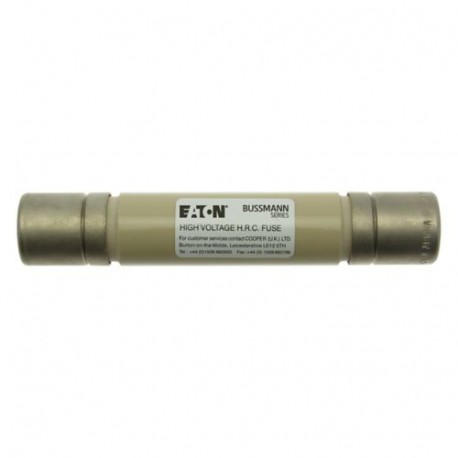

EATON - MOELLER 7.2KV 6.3A FUSE 7.2KV 6.3A FUSE 7.2ABWNA6.3 7-2ABWNA6-3 EATON ELECTRIC Motor-protective circuit-breaker, 3p+1N/O+1N/C, Ir 4-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 6.3A FUSE 7.2ABWNA6.3 7-2ABWNA6-3 EATON ELECTRIC Motor-protective circuit-breaker, 3p+1N/O+1N/C, Ir 4-..

7.2KV 6.3A FUSE

72ABWNA63

7-2ABWNA6-3

EATON - MOELLER

1 Pcs.

Motor-protective circuit-breaker, 3p+1N/O+1N/C, Ir=4-6.3A, screw connection 7.2KV 6.3A FUSE 7.2ABWNA6.3 - VT fuse-link, medium voltage, 6.3 A, AC 7.2 kV, 142 x 25.4 mm, back-up, BS, IEC Fuse, VT fuse-link, medium voltage, 6.3 A, AC 7.2 kV, 142 x 25.4 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS 2692-1, IEC 60282-1, Breaking Capacity 45 kA, Optional accessories, Supplied with

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protect auxiliary electrical equipment against short-circuit events with this Eaton Moeller 7.2KV 6.3A FUSE. Medium voltage fuse-links are standard components for securing potential transformers and low-current auxiliary feeds in substations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 6.3 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Breaking capacity (EF005617): 45 kA
  • Application (EF000041): Auxiliary transformer protection
  • Length (EF001438): 142 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): No
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
VT fuse-link, medium voltage, 6.3 A, AC 7.2 kV, 142 x 25.4 mm, back-up, BS, IEC
Fuse, VT fuse-link, medium voltage, 6.3 A, AC 7.2 kV, 142 x 25.4 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS 2692-1, IEC 60282-1, Breaking Capacity 45 kA, Optional accessories, Supplied with

General specifications
Product name
Eaton Bussmann series medium auxiliary fuse
Part no.
7.2ABWNA6.3
EAN
5027590052603
Product Length/Depth
142 millimetre
Product height
25.4 millimetre
Product width
25.4 millimetre
Product weight
190 gram
Compliances
Contact Manufacturer
Certifications
IEC60282-1
Product Tradename
None
Product Type
Medium voltage auxiliary fuse
Product Sub Type
None
Electrical data
Amperage Rating
6.3 A
Voltage rating
7.2 kV
Breaking capacity
45 kA
Performance Cat According To IEC 60282-1
Back-up
Class
Class back-up
Resistance
0.24 ohms
Product specifications
Application
Protection of auxiliary transformers
Fuse indicator
Non Indicating
Fuse size
142 x 25.4 mm
Standard
British Standard

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
