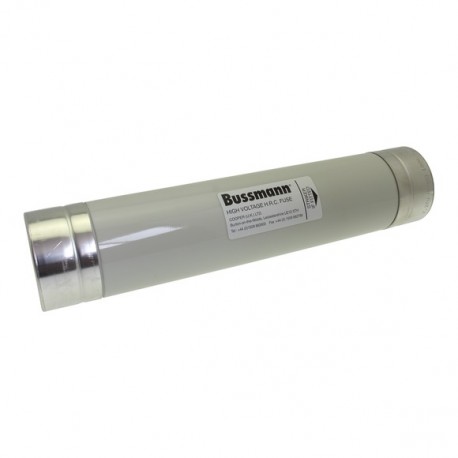

EATON - MOELLER 7.2KV 50AMP 2" '36' AIR FUSE 7.2KV 50AMP 2" '36' AIR FUSE 7.2BDGH3650 7-2BDGH3650 EATON ELECTRIC Fuse, Air fuse-link, medium voltage, 10 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 50AMP 2" '36' AIR FUSE 7.2BDGH3650 7-2BDGH3650 EATON ELECTRIC Fuse, Air fuse-link, medium voltage, 10 ..

7.2KV 50AMP 2" '36' AIR FUSE

72BDGH3650

7-2BDGH3650

EATON - MOELLER

3 Pcs.

Fuse, Air fuse-link, medium voltage, 10 A, AC 12 kV, 51 x 359 mm, back-up, BS, with striker, style 36 tags 7.2KV 50AMP 2" '36' AIR FUSE 7.2KV 50AMP 2" '36' AIR FUSE - Air fuse-link, medium voltage, 50 A, AC 7.2 kV, 40 kA, BS, 51 x 359 mm, back-up, BS, with striker Fuse, Air fuse-link, medium voltage, 50 A, AC 7.2 kV, BS, 51 x 359 mm, back-up, BS, with striker, cylindrical with special tag, protection of primary side transformers, BS2692-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Medium-voltage switchgear installations utilize components such as the Eaton Moeller 7.2KV 50AMP 2" '36' AIR FUSE to protect electrical infrastructure. These air fuse-links are standard solutions for primary transformer protection, interrupting fault currents safely within air-insulated enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 50 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 40 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 359 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Air fuse-link, medium voltage, 50 A, AC 7.2 kV, 40 kA, BS, 51 x 359 mm, back-up, BS, with striker
Fuse, Air fuse-link, medium voltage, 50 A, AC 7.2 kV, BS, 51 x 359 mm, back-up, BS, with striker, cylindrical with special tag, protection of primary side transformers, BS2692-1, Breaking Capacity 40 kA

Delivery program

Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
50 A
Rated voltage
AC 7.2 kV
Construction size
BS
Size
51 x 359 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
40 kA
usable for size/applications
protection of primary side transformers
Standard/Approval
BS
Shape
cylindrical with special tag
Standards/Regulations
BS2692-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
50 A
Rated voltage
7.2 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
40 kA
Utilization category
Other
Application
Primary side transformer protection
Length
359 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
