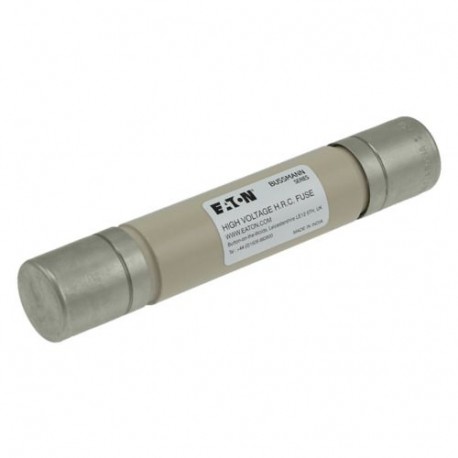

EATON - MOELLER 7.2KV 3A 7/8" VT FUSE 7.2KV 3A 7/8" VT FUSE 7.2VTDNN3 7-2VTDNN3 EATON ELECTRIC VT fuse-link, medium voltage, 3 A, AC 7.2 kV, 143 x.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 3A 7/8" VT FUSE 7.2VTDNN3 7-2VTDNN3 EATON ELECTRIC VT fuse-link, medium voltage, 3 A, AC 7.2 kV, 143 x..

7.2KV 3A 7/8" VT FUSE

72VTDNN3

7-2VTDNN3

EATON - MOELLER

12 Pcs.

VT fuse-link, medium voltage, 3 A, AC 7.2 kV, 143 x 22.2 mm, back-up, BS, IEC 7.2KV 3A 7/8" VT FUSE Fuse, VT fuse-link, medium voltage, 3 A, AC 7.2 kV, 143 x 22.2 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS2692-1, IEC 60282-1

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller 7.2KV 3A 7/8" VT FUSE is a VT fuse-link, medium voltage, utilized for auxiliary transformer protection in switchgear panels. This component reliably isolates voltage transformers during overcurrent events.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 3 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Application (EF000041): Auxiliary transformer protection
  • Length (EF001438): 143 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): No
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium auxiliary fuse
Catalog Number
7.2VTDNN3
EAN
5027590488501
Product Length/Depth
143 mm
Product Height
22.2 mm
Product Width
22.2 mm
Product Weight
178.33 g
Compliances
CE Marked
RoHS conform

Electrical data

Amperage Rating
3 A
Voltage rating
7.2 kV
Voltage type
AC
Performance Cat According To IEC 60282-1
Back-up
Class
Class back-up

Product specification

Construction size
143 x 22.2 mm
Standard
British Standard

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
