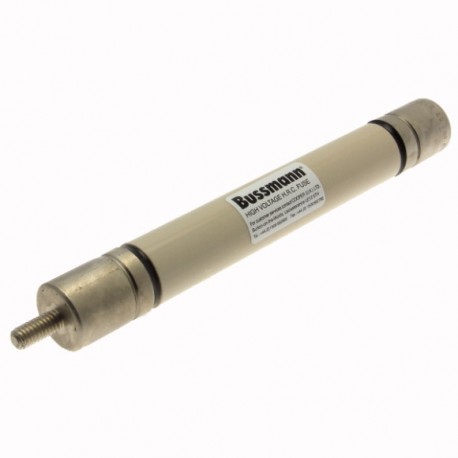

7.2KV 3.15A FUSE 7.2OBCN223.15 7-2OBCN223-15 EATON ELECTRIC Air fuse-link, medium voltage, 3.15 A, AC 36 kV,..
7.2KV 3.15A FUSE
72OBCN22315
7-2OBCN223-15
EATON - MOELLER
1 Pcs.
Air fuse-link, medium voltage, 3.15 A, AC 36 kV, 25.4 x 359mm, back-up, BS, no tags
7.2KV 3.15A FUSE
7.2OBCN223.15 - VT fuse-link, medium voltage, 3.15 A, AC 7.2 kV, 195 x 25.4 mm, back-up, BS, IEC
Fuse, VT fuse-link, medium voltage, 3.15 A, AC 7.2 kV, 195 x 25.4 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, Breaking Capacity 45 kA
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲VT fuse-link, medium voltage, 3.15 A, AC 7.2 kV, 195 x 25.4 mm, back-up, BS, IEC
Fuse, VT fuse-link, medium voltage, 3.15 A, AC 7.2 kV, 195 x 25.4 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, Breaking Capacity 45 kA
General specifications
Product name
Eaton Bussmann series medium auxiliary fuse
Part no.
7.2OBCN223.15
EAN
5027590053631
Product Length/Depth
195 millimetre
Product height
25.4 millimetre
Product width
25.4 millimetre
Product weight
245 gram
Compliances
BS 2692-1
Certifications
IEC60282-1
Product Tradename
None
Product Type
Medium voltage auxiliary fuse
Product Sub Type
None
Electrical data
Amperage Rating
3.15 A
Voltage rating
7.2 kV
Performance Cat According To IEC 60282-1
Back-up
Class
Class back-up
Resistance
0.61 ohms
Product specifications
Application
voltage and auxiliary transformers
Fuse size
195 x 25.4 mm
Standard
British Standard
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 3.15 A |
| Rated voltage (EF000228) | 7.2 kV |
| Voltage type (EF000187) | AC |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Auxiliary transformer protection |
| Length (EF001438) | 195 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | No |
| Standard (EF009322) | British Standard |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Oil |
