View larger
Images are for illustrative purposes only. Please refer to data sheet for details

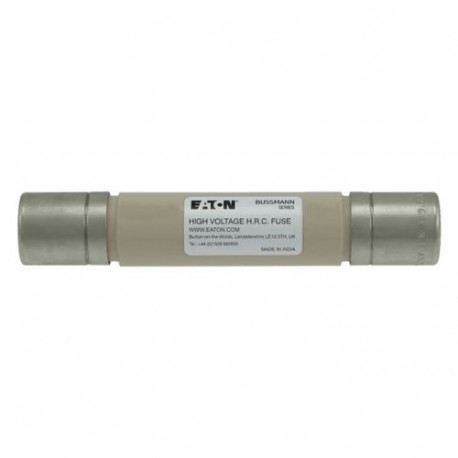

7.2KV 3.15A 'BWNA' FUSE 7.2ABWNA3.15 7-2ABWNA3-15 EATON ELECTRIC Air fuse-link, medium voltage, 3.15 A, AC 3..
7.2KV 3.15A 'BWNA' FUSE
72ABWNA315
7-2ABWNA3-15
EATON - MOELLER
1 Pcs.
Air fuse-link, medium voltage, 3.15 A, AC 36 kV, 25.4 x 359mm, back-up, BS, no tags
7.2KV 3.15A FUSE
7.2KV 3.15A FUSE - VT fuse-link, medium voltage, 3.15 A, AC 7.2 kV, 45 kA, 142 x 25.4 mm, back-up, BS, IEC
Fuse, VT fuse-link, medium voltage, 3.15 A, AC 7.2 kV, 142 x 25.4 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, Breaking Capacity 45 kA
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium auxiliary fuse
Catalog Number
7.2ABWNA3.15
Model Code
7.2KV 3.15A 'BWNA' FUSE
EAN
5027590052597
UPC
051712837279
Product Length/Depth
142 mm
Product Height
25.4 mm
Product Width
25.4 mm
Product Weight
190 g
Certifications
IEC60282-1
Electrical data
Amperage Rating
3.15 A
Voltage rating
7.2 kV
Voltage type
AC
Breaking capacity
45 kA
Performance Cat According To IEC 60282-1
Back-up
Class
Class back-up
Product specification
Fuse indicator
Non Indicating
Construction size
142 x 25.4 mm
Standard
British Standard
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 3.15 A |
| Rated voltage (EF000228) | 7.2 kV |
| Voltage type (EF000187) | AC |
| Breaking capacity (EF005617) | 45 kA |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Auxiliary transformer protection |
| Length (EF001438) | 142 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | No |
| Standard (EF009322) | British Standard |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
