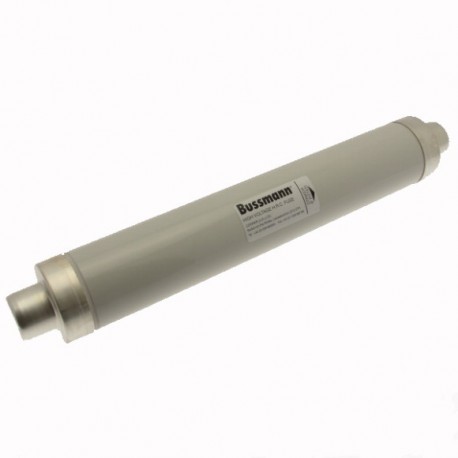

EATON - MOELLER 7.2KV 31.5A 3"M/S 1242 7.2KV 31.5A 3"M/S 1242 7.2WFMSJ31.5 7-2WFMSJ31-5 EATON ELECTRIC Motor fuse-link, medium voltage, 31.5 A, AC .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 31.5A 3"M/S 1242 7.2WFMSJ31.5 7-2WFMSJ31-5 EATON ELECTRIC Motor fuse-link, medium voltage, 31.5 A, AC ..

7.2KV 31.5A 3"M/S 1242

72WFMSJ315

7-2WFMSJ31-5

EATON - MOELLER

1 Pcs.

Motor fuse-link, medium voltage, 31.5 A, AC 7.2 kV, DIN 43625 3", 76 x 442 mm, back-up, DIN, with striker Motor cartridge fuse, MT, 31.5 A, AC 7.2 kV, DIN43625 3", 76 x 442 mm, back-up, DIN, with striker Fuse, Motor fuse-link, medium voltage, 31.5 A, AC 7.2 kV, DIN 43625 3z, 76 x 442 mm, back-up, DIN, with striker, cylindrical, motor protection, DIN 43625, VDE 0670-4, IEC 60282-1, Breaking Capacity 63 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Motor fuse-link 7.2KV 31.5A 3"M/S 1242 from Eaton Moeller is designed to protect industrial electric motors and associated control gear from the damaging thermal and mechanical effects of short-circuit currents. These medium voltage elements interrupt fault currents reliably within heavy-duty starter assemblies.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 31.5 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 0.063 kA
  • Length (EF001438): 530 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲
Motor fuse-link, medium voltage, 31.5 A, AC 7.2 kV, DIN 43625 3", 76 x 442 mm, back-up, DIN, with striker
Fuse, Motor fuse-link, medium voltage, 31.5 A, AC 7.2 kV, DIN 43625 3", 76 x 442 mm, back-up, DIN, with striker, cylindrical, motor protection, DIN 43625, VDE 0670-4, IEC 60282-1, Breaking Capacity 63 kA

Delivery program

Product range
Fuse
Basic function
Motor fuse-link
Field of application
medium voltage
Rated current [I]
31.5 A
Rated voltage
AC 7.2 kV
Construction size
DIN 43625 3"
Size
76 x 442 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
63 kA
usable for size/applications
motor protection
Standard/Approval
DIN
Shape
cylindrical
Standards/Regulations
DIN 43625
VDE 0670-4
IEC 60282-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
31.5 A
Rated voltage
7.2 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
63 kA
Utilization category
Other
Application
Motor protection
Length
530 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
DIN
Release characteristic
Other
Installation technique
Air
