> EATON - MOELLER > Bussmann Series Medium Voltage fuses and accessories > 72WKNHO22X250

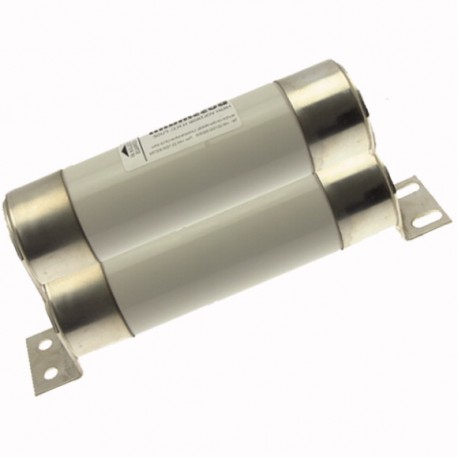

EATON - MOELLER 7.2KV 2X250A M/S 1241 7.2KV 2X250A M/S 1241 7.2WKNHO2 2X250 3.6WKFHO22X250 EATON ELECTRIC Motor fuse-link, medium voltage, 450 A, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 2X250A M/S 1241 7.2WKNHO2 2X250 3.6WKFHO22X250 EATON ELECTRIC Motor fuse-link, medium voltage, 450 A, ..

7.2KV 2X250A M/S 1241

72WKNHO22X250

3.6WKFHO22X250

EATON - MOELLER

1 Pcs.

Motor fuse-link, medium voltage, 450 A, AC 3.6 kV, 76 x 254 mm, back-up, BS, with striker Motor cartridge fuse, MT, 450 A, AC 7.2 kV, 76 x 403mm, back-up, BS, with striker 7.2WKNHO2 2X250 - Motor fuse-link, medium voltage, 450 A, AC 7.2 kV, 76 x 403mm, back-up, BS, with striker Fuse, Motor fuse-link, medium voltage, 450 A, AC 7.2 kV, 76 x 403mm, back-up, BS, with striker, cylindrical, offset bolted tags, dual-barrel, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Motor fuse-link, medium voltage, 450 A, AC 7.2 kV, 76 x 403mm, back-up, BS, with striker
Fuse, Motor fuse-link, medium voltage, 450 A, AC 7.2 kV, 76 x 403mm, back-up, BS, with striker, cylindrical, offset bolted tags, dual-barrel, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 40 kA

Delivery program

Product range
Fuse
Basic function
Motor fuse-link
Field of application
medium voltage
Rated current [I]
450 A
Rated voltage
AC 7.2 kV
Size
76 x 403mm
Utilization category
back-up
Status indicator
with striker
Description
dual-barrel
Breaking Capacity
40 kA
usable for size/applications
motor protection
Standard/Approval
BS
Shape
cylindrical
offset bolted tags
Standards/Regulations
BS2692-1
IEC 60282-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
250 A
Rated voltage
7.2 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
40 kA
Utilization category
Other
Application
Motor protection
Length
486 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air

ETIM for 7.2WKNHO2 2X250 Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 250 A
Rated voltage (EF000228) 7.2 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Breaking capacity (EF005617) 0.04 kA
Utilization category according to IEC 60269 (EF002572) Other
Length (EF001438) 486 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) Yes
Standard (EF009322) British Standard
Release characteristic (EF000889) Other
Installation technique (EF001474) Air
