7.2KV 20AMP 2.5" OIL FUSE 7.2OEFMA20 7-2OEFMA20 EATON ELECTRIC Oil fuse-link, medium voltage, 20 A, AC 7.2 k..
7.2KV 20AMP 2.5" OIL FUSE
72OEFMA20
7-2OEFMA20
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

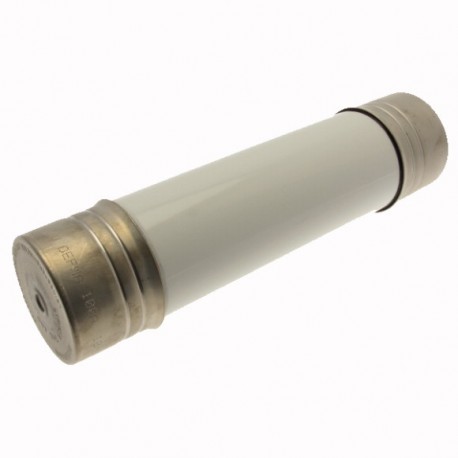

Eaton Moeller 7.2KV 20AMP 2.5" OIL FUSE is an oil fuse-link, medium voltage intended for installation in oil-immersed switchgear assemblies. This component protects power assets by interrupting abnormal circuit loads in harsh industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 20 A
- Rated voltage (EF000228): 7.2 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 45 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 254 mm
- Diameter (EF000551): 63.5 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): British Standard
- Installation technique (EF001474): Oil
More info
▲Delivery program
IEC
ESI
IEC 60282-1
ESI 12-8
