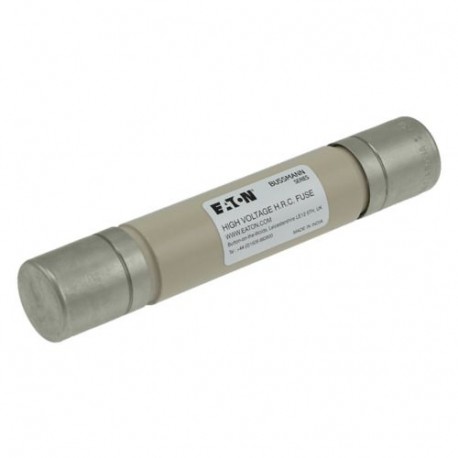

EATON - MOELLER 7.2KV 1A 7/8" VT FUSE 7.2KV 1A 7/8" VT FUSE 7.2VTBNN1 7-2VTBNN1 EATON ELECTRIC VT fuse-link, medium voltage, 1 A, AC 7.2 kV, 143 x.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 1A 7/8" VT FUSE 7.2VTBNN1 7-2VTBNN1 EATON ELECTRIC VT fuse-link, medium voltage, 1 A, AC 7.2 kV, 143 x..

7.2KV 1A 7/8" VT FUSE

72VTBNN1

7-2VTBNN1

EATON - MOELLER

12 Pcs.

VT fuse-link, medium voltage, 1 A, AC 7.2 kV, 143 x 22.2 mm, back-up, BS, IEC 7.2KV 1A 7/8" VT FUSE Fuse, VT fuse-link, medium voltage, 1 A, AC 7.2 kV, 143 x 22.2 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS2692-1, IEC 60282-1

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller 7.2KV 1A 7/8" VT FUSE serves as a voltage transformer fuse-link used to protect auxiliary and measurement circuits in medium voltage installations. Fuses of this classification safely interrupt fault currents in potential transformer setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 1 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Application (EF000041): Auxiliary transformer protection
  • Length (EF001438): 143 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): No
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium auxiliary fuse
Catalog Number
7.2VTBNN1
EAN
5027590488457
Product Length/Depth
143 mm
Product Height
22.2 mm
Product Width
22.2 mm
Product Weight
0.001 g
Certifications
BS
IEC

Electrical data

Amperage Rating
1 A
Voltage rating
7.2 kV
Voltage type
AC
Performance Cat According To IEC 60282-1
Back-up
Class
Class back-up

Product specification

Construction size
143 x 22.2 mm
Standard
British Standard

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
