7.2KV 16AMP 2" '36' AIR FUSE 7.2BDGH3616 7-2BDGH3616 EATON ELECTRIC Fuse, Air fuse-link, medium voltage, 10 ..

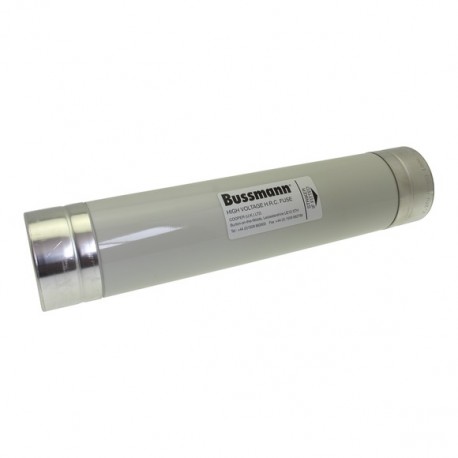

7.2KV 16AMP 2" '36' AIR FUSE
72BDGH3616
7-2BDGH3616
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller 7.2KV 16AMP 2" '36' AIR FUSE is a medium voltage air fuse-link typically deployed to safeguard electrical infrastructure against overcurrent events. Fuses of this classification function by interrupting fault currents in medium voltage circuits, isolating damaged segments to protect downstream transformers and distribution gear.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 16 A
- Rated voltage (EF000228): 7.2 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 40 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 359 mm
- Diameter (EF000551): 51 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): British Standard
- Installation technique (EF001474): Air
