> EATON - MOELLER > Bussmann Series Medium Voltage fuses and accessories > 72TFLSJ160

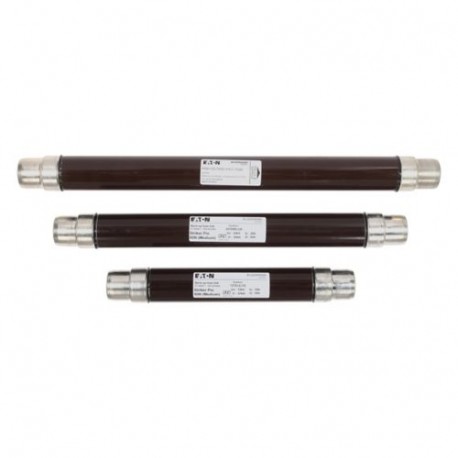

EATON - MOELLER 7.2KV 160Amp 3" 'J' DIN Fuse 7.2KV 160Amp 3" 'J' DIN Fuse 7.2TFLSJ160 7-2TFLSJ160 EATON ELECTRIC cartridge fuse, MT, 160 A, AC 7.2 kV, 3".. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 160Amp 3" 'J' DIN Fuse 7.2TFLSJ160 7-2TFLSJ160 EATON ELECTRIC cartridge fuse, MT, 160 A, AC 7.2 kV, 3"..

7.2KV 160Amp 3" 'J' DIN Fuse

72TFLSJ160

7-2TFLSJ160

EATON - MOELLER

3 Pcs.

cartridge fuse, MT, 160 A, AC 7.2 kV, 3", 76 x 292 mm, Back-up, DIN, with striker 7.2KV 160Amp 3" 'J' DIN Fuse 7.2KV 160Amp 3" 'J' DIN Fuse - Fuse-link, medium voltage, 160 A, AC 7.2 kV, 40 kA, 3", 76 x 292 mm, back-up, DIN, with striker Fuse, Fuse-link, medium voltage, 160 A, AC 7.2 kV, 3z, 76 x 292 mm, Back-up, DIN, with striker, transformer protection, indoor or outdoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
7.2TFLSJ160
EAN
5027590488419
UPC
051712186025
Product Length/Depth
292 mm
Product Height
76 mm
Product Width
76 mm
Product Weight
3100 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1

Electrical data

Amperage Rating
160 A
Voltage rating
7.2 kV
Voltage type
AC
Breaking capacity
40 kA
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Resistance
2.73 Ohms
Watt losses
97 W

Product specifications

Fuse indicator
With Striker
Construction size
76 x 292 mm
Standard
DIN
Standard
DIN
Mounting method
Clip-in

Compatible fuse clip

Used with
270303 Fuse clip
A3354730 Fuse clip

ETIM for 7.2TFLSJ160 Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 160 A
Rated voltage (EF000228) 7.2 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Breaking capacity (EF005617) 40 kA
Utilization category according to IEC 60269 (EF002572) Other
Application (EF000041) Primary side transformer protection
Length (EF001438) 292 mm
Diameter (EF000551) 76 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) Yes
Standard (EF009322) DIN
Release characteristic (EF000889) Other
Installation technique (EF001474) Air
