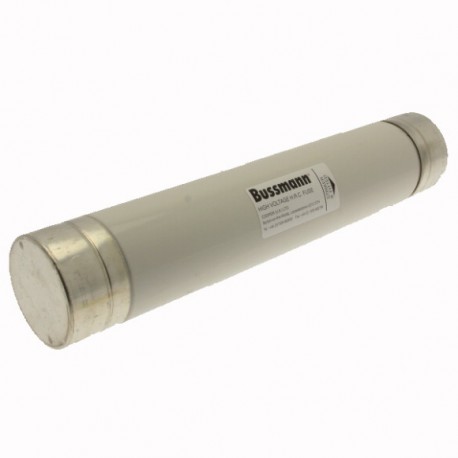

EATON - MOELLER 7.2KV 125A MOTOR START FUSE 7.2KV 125A MOTOR START FUSE 7.2WFNHA125 7-2WFNHA125 EATON ELECTRIC Motor fuse-link, medium voltage, 125 A, A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 125A MOTOR START FUSE 7.2WFNHA125 7-2WFNHA125 EATON ELECTRIC Motor fuse-link, medium voltage, 125 A, A..

7.2KV 125A MOTOR START FUSE

72WFNHA125

7-2WFNHA125

EATON - MOELLER

3 Pcs.

Motor fuse-link, medium voltage, 125 A, AC 7.2 kV, 76 x 403 mm, back-up, BS, with striker, no tags 7.2KV 125A MOTOR START FUSE 7.2KV 125A MOTOR START FUSE - Motor fuse-link, medium voltage, 125 A, AC 7.2 kV, 40 kA, 76 x 403 mm, back-up, BS, with striker Fuse, Motor fuse-link, medium voltage, 125 A, AC 7.2 kV, 76 x 403 mm, back-up, BS, with striker, cylindrical, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Motor fuse-link, medium voltage, 125 A, AC 7.2 kV, 40 kA, 76 x 403 mm, back-up, BS, with striker
Fuse, Motor fuse-link, medium voltage, 125 A, AC 7.2 kV, 76 x 403 mm, back-up, BS, with striker, cylindrical, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 40 kA

Delivery program

Product range
Fuse
Basic function
Motor fuse-link
Field of application
medium voltage
Rated current [I]
125 A
Rated voltage
AC 7.2 kV
Size
76 x 403 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
40 kA
usable for size/applications
motor protection
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS2692-1
IEC 60282-1

Technical data ETIM 7.0

Aparatos de protección y fusibles (EG000020) / Medium-/high voltage fuse (EC003507)
Corriente nominal
125
Tensión nominal
7.2
Tipo de tensión
EV000460
Frecuencia nominal
50 - 50
Capacidad de desconexión
40
Categoría de uso
EV000154
Función
EV021971
Longitud
530
Diámetro
76
Con cebador
Ja
Tipo de disparo
EV000154
Sistema de instalación
EV021474

ETIM for 7.2WFNHA125 Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 125 A
Rated voltage (EF000228) 7.2 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Breaking capacity (EF005617) 0.04 kA
Utilization category according to IEC 60269 (EF002572) Other
Application (EF000041) Motor protection
Length (EF001438) 403 mm
Diameter (EF000551) 76 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) Yes
Standard (EF009322) British Standard
Release characteristic (EF000889) Other
Installation technique (EF001474) Air
