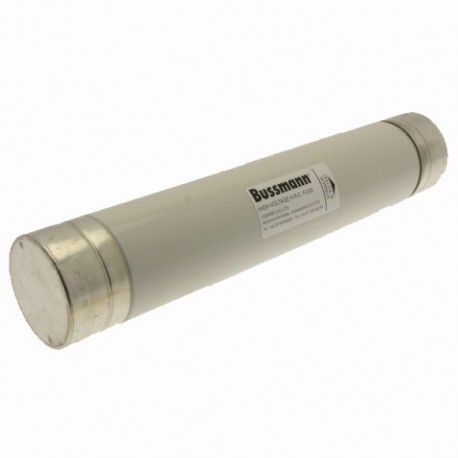

EATON - MOELLER 7.2KV 100A MOTOR START FUSE 7.2KV 100A MOTOR START FUSE 7.2WFNHA100 7-2WFNHA100 EATON ELECTRIC Field bus module BACnet MS/TP RS485 with .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 100A MOTOR START FUSE 7.2WFNHA100 7-2WFNHA100 EATON ELECTRIC Field bus module BACnet MS/TP RS485 with ..

7.2KV 100A MOTOR START FUSE

72WFNHA100

7-2WFNHA100

EATON - MOELLER

3 Pcs.

Field bus module BACnet MS/TP RS485 with screw terminals for frequency converter SVX and SPX 100A 7.2kV MV Motor Fuse Link no tags HS 7.2KV 100A MOTOR START FUSE - Motor fuse-link, medium voltage, 100 A, AC 7.2 kV, 40 kA, 76 x 403 mm, back-up, BS, with striker Fuse, Motor fuse-link, medium voltage, 100 A, AC 7.2 kV, 76 x 403 mm, back-up, BS, with striker, cylindrical, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protect medium voltage motor control setups with the Eaton Moeller 7.2KV 100A MOTOR START FUSE. These specialized fuses are built to endure the frequent thermal and mechanical stresses associated with large motor startup routines in industrial plants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 100 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 0.04 kA
  • Application (EF000041): Motor protection
  • Length (EF001438): 403 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Motor fuse-link, medium voltage, 100 A, AC 7.2 kV, 40 kA, 76 x 403 mm, back-up, BS, with striker
Fuse, Motor fuse-link, medium voltage, 100 A, AC 7.2 kV, 76 x 403 mm, back-up, BS, with striker, cylindrical, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 40 kA

Delivery program

Product range
Fuse
Basic function
Motor fuse-link
Field of application
medium voltage
Rated current [I]
100 A
Rated voltage
AC 7.2 kV
Size
76 x 403 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
40 kA
usable for size/applications
motor protection
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS2692-1
IEC 60282-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
100 A
Rated voltage
7.2 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
40 kA
Utilization category
Other
Application
Motor protection
Length
530 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air
