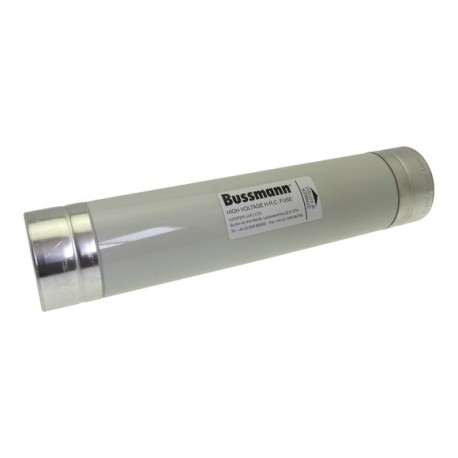

EATON - MOELLER 7.2KV 100AMP FUSE 7.2BFGH9100 7.2KV 100AMP FUSE 7.2BFGH9100 7.2BFGH9100 7-2BFGH9100 EATON ELECTRIC Fuse, Air fuse-link, medium voltage, 25.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 100AMP FUSE 7.2BFGH9100 7.2BFGH9100 7-2BFGH9100 EATON ELECTRIC Fuse, Air fuse-link, medium voltage, 25..

7.2KV 100AMP FUSE 7.2BFGH9100

72BFGH9100

7-2BFGH9100

EATON - MOELLER

3 Pcs.

Fuse, Air fuse-link, medium voltage, 25 A, AC 12 kV, 359 x 50.8 mm, back-up, BS, with striker, style 40 tags air fuse cartridge, MT, 100 A, AC 7.2 kV, BS, 76 x 359 mm, back-up, BS, with striker 7.2BFGH9100 - Air fuse-link, medium voltage, 100 A, AC 7.2 kV, BS, 76 x 359 mm, back-up, BS, with striker, style 9 tag Fuse, Air fuse-link, medium voltage, 100 A, AC 7.2 kV, BS, 76 x 359 mm, back-up, BS, with striker, cylindrical with special tag, protection of primary side transformers, BS2692-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller 7.2KV 100AMP FUSE 7.2BFGH9100 is an air-insulated medium voltage fuse designed to protect primary side transformer circuits against overcurrents and short circuits. Industrial switchgear systems depend on these components for reliable fault isolation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 100 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 40 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 359 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Air fuse-link, medium voltage, 100 A, AC 7.2 kV, BS, 76 x 359 mm, back-up, BS, with striker, style 9 tag
Fuse, Air fuse-link, medium voltage, 100 A, AC 7.2 kV, BS, 76 x 359 mm, back-up, BS, with striker, cylindrical with special tag, protection of primary side transformers, BS2692-1, Breaking Capacity 40 kA

Delivery program

Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
100 A
Rated voltage
AC 7.2 kV
Construction size
BS
Size
76 x 359 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
40 kA
usable for size/applications
protection of primary side transformers
Standard/Approval
BS
Shape
cylindrical with special tag
Standards/Regulations
BS2692-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
100 A
Rated voltage
7.2 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
40 kA
Utilization category
Other
Application
Primary side transformer protection
Length
359 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air
