7.2KV 100Amp 3" 'J' DIN Fuse 7.2TFLSJ100 7-2TFLSJ100 EATON ELECTRIC cartridge fuse, MT, 100 A, AC 7.2 kV, 3"..
7.2KV 100Amp 3" 'J' DIN Fuse
72TFLSJ100
7-2TFLSJ100
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

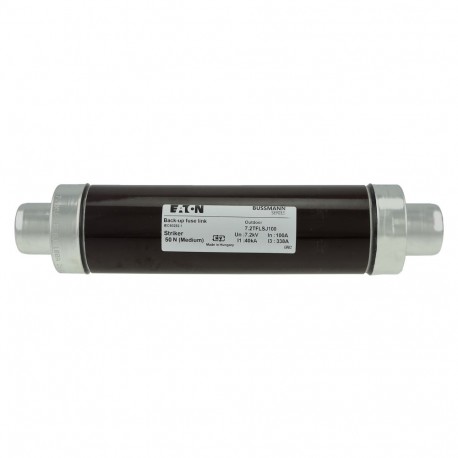

The Eaton Moeller 7.2KV 100Amp 3" 'J' DIN Fuse (7.2TFLSJ100) is a medium voltage cartridge fuse manufactured for distribution network safety. Such components are typically installed to safeguard transformers against high fault currents and maintain operational safety in electrical enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 100 A
- Rated voltage (EF000228): 7.2 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 40 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 292 mm
- Diameter (EF000551): 76 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): DIN
- Installation technique (EF001474): Air
More info
▲Delivery program
indoor or outdoor use
VDE 0670-4
VDE 0670-402
IEC 60282-1
