View larger
Images are for illustrative purposes only. Please refer to data sheet for details

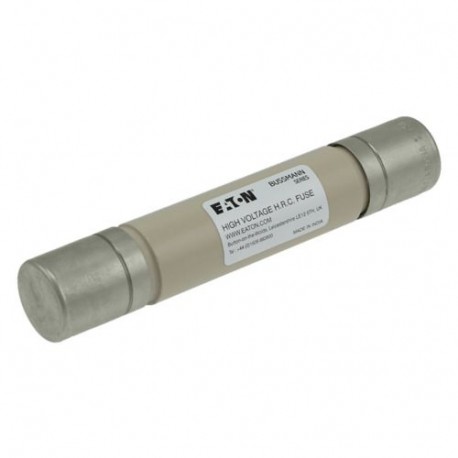

7.2KV 0.62AMP V/T FUSE DCR 2315 7.2VTDNN0.62 7-2VTDNN0-62 EATON ELECTRIC VT fuse-link, medium voltage, 0.62 ..
7.2KV 0.62AMP V/T FUSE DCR 2315
72VTDNN062
7-2VTDNN0-62
EATON - MOELLER
12 Pcs.
VT fuse-link, medium voltage, 0.62 A, AC 7.2 kV, 143 x 22.2 mm, back-up, BS, IEC
7.2KV 0.62AMP V/T FUSE DCR 2315
Fuse, VT fuse-link, medium voltage, 0.62 A, AC 7.2 kV, 143 x 22.2 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS2692-1, IEC 60282-1
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium auxiliary fuse
Catalog Number
7.2VTDNN0.62
EAN
5027590488495
Product Length/Depth
143 mm
Product Height
22.2 mm
Product Width
22.2 mm
Product Weight
0.001 g
Compliances
RoHS conform
CE Marked
CE Marked
Electrical data
Amperage Rating
0.62 A
Voltage rating
7.2 kV
Voltage type
AC
Performance Cat According To IEC 60282-1
Back-up
Class
Class back-up
Product specification
Construction size
143 x 22.2 mm
Standard
British Standard
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 0.62 A |
| Rated voltage (EF000228) | 7.2 kV |
| Voltage type (EF000187) | AC |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Auxiliary transformer protection |
| Length (EF001438) | 143 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | No |
| Standard (EF009322) | British Standard |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
