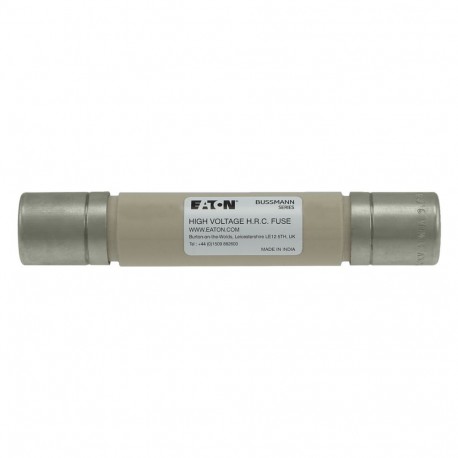

EATON - MOELLER 7.2KV 0.62A V/T FUSE DCR 2389 7.2KV 0.62A V/T FUSE DCR 2389 7.2VTBNN0.62 7-2VTBNN0-62 EATON ELECTRIC VT fuse-link, medium voltage, 0.62 A,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 0.62A V/T FUSE DCR 2389 7.2VTBNN0.62 7-2VTBNN0-62 EATON ELECTRIC VT fuse-link, medium voltage, 0.62 A,..

7.2KV 0.62A V/T FUSE DCR 2389

72VTBNN062

7-2VTBNN0-62

EATON - MOELLER

20 Pcs.

VT fuse-link, medium voltage, 0.62 A, AC 7.2 kV, 143 x 22.2 mm, back-up, BS, IEC VT fuse cartridge, MT, 0.62 A, AC 7.2 kV, 143 x 22.2 mm, back-up, BS, IEC Fuse, VT fuse-link, medium voltage, 0.62 A, AC 7.2 kV, 143 x 22.2 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS2692-1, IEC 60282-1

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller 7.2KV 0.62A V/T FUSE DCR 2389 (7.2VTBNN0.62) is a voltage transformer fuse-link designed to isolate measurement and instrumentation circuits during electrical faults. This component provides precise protection for auxiliary gear. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 2 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Length (EF001438): 143 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): No
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
VT fuse-link, medium voltage, 0.62 A, AC 7.2 kV, 143 x 22.2 mm, back-up, BS, IEC
Fuse, VT fuse-link, medium voltage, 0.62 A, AC 7.2 kV, 143 x 22.2 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS2692-1, IEC 60282-1

Delivery program

Product range
Fuse
Basic function
VT fuse-link
Field of application
medium voltage
Rated current [I]
0.62 A
Rated voltage
AC 7.2 kV
Size
143 x 22.2 mm
Utilization category
back-up
usable for size/applications
voltage and auxiliary transformers
Standard/Approval
BS
IEC
Shape
cylindrical
Standards/Regulations
BS2692-1
IEC 60282-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
2 A
Rated voltage
7.2 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
kA
Utilization category
Other
Application
Auxiliary transformer protection
Length
143 mm
Diameter
22.2 mm
Performance category according to IEC 60282-1
Back-up
With striker
No
Standard
British Standard
Release characteristic
Other
Installation technique
Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
