7.2KV 160A 3" MOTOR START FUSE 7.2WFNHA160 7-2WFNHA160 EATON ELECTRIC Motor fuse-link, medium voltage, 160 A..

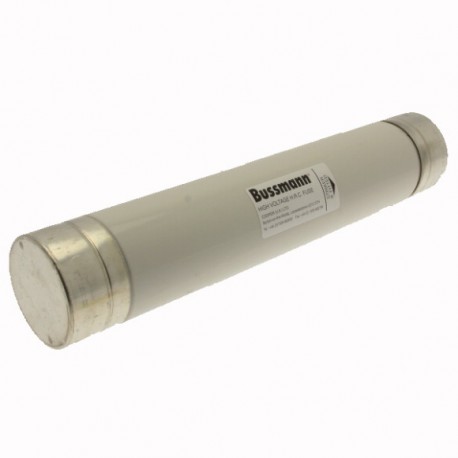

7.2KV 160A 3" MOTOR START FUSE
72WFNHA160
7-2WFNHA160
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller 7.2KV 160A 3" MOTOR START FUSE is a specialized medium-voltage device built to safeguard industrial motor applications. This component isolates system faults quickly while maintaining resilience against high motor starting currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 160 A
- Rated voltage (EF000228): 7.2 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 0.04 kA
- Application (EF000041): Motor protection
- Length (EF001438): 403 mm
- Diameter (EF000551): 76 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): British Standard
- Installation technique (EF001474): Air
More info
▲Delivery program
IEC 60282-1
