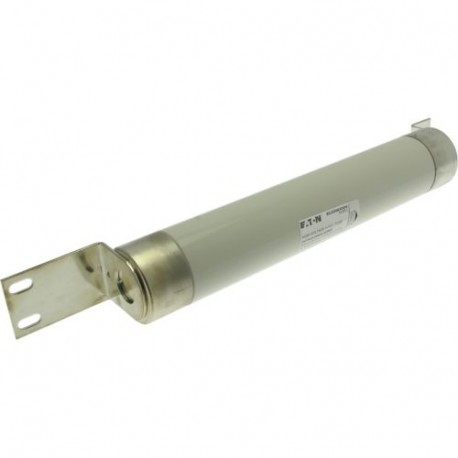

EATON - MOELLER 7.2WFMH7100 7.2WFMH7100 7-2WFMH7100 EATON ELECTRIC Motor fuse-link, medium voltage, 100 A, AC 7.2 kV, 76 x 442 mm, back-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2WFMH7100 7-2WFMH7100 EATON ELECTRIC Motor fuse-link, medium voltage, 100 A, AC 7.2 kV, 76 x 442 mm, back-..

7.2WFMH7100

72WFMH7100

7-2WFMH7100

EATON - MOELLER

1 Pcs.

7.2KV 100AMP MOTORSTART 3" FUSE 1242B 7.2WFMH7100 - Motor fuse-link, medium voltage, 100 A, AC 7.2 kV, 76 x 442 mm, back-up, BS, with striker Fuse, Motor fuse-link, medium voltage, 100 A, AC 7.2 kV, 76 x 442 mm, back-up, BS, with striker, cylindrical, offset bolted tags, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 63 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage motor fuse
Catalog Number
7.2WFMH7100
EAN
5027590054393
UPC
051712837569
Product Length/Depth
442 mm
Product Height
76 mm
Product Width
76 mm
Product Weight
5306 g
Compliances
Contact factory

Product specifications

Used with
A3354730 Nickel-plated copper fuse clip
Type
fuse
Application
Motor protection
Amperage Rating
100 A
Fuse indicator
Non Indicating
Fuse size
76 x 442 mm
Breaking capacity
63 A
Installation technique
Air
Performance Cat According To IEC 60282-1
Back-up
Product application
Motor protection
Rated frequency - max
50 Hz
Rated frequency - min
50 Hz
Release characteristic
Other
Standard
DIN
Utilization category
Other
Voltage type
AC
With striker
Yes
Class
Class back-up
Barrels
1
Fuse shape
Cylindrical, offset bolted tags
Fuse diameter
76 mm
Interrupt rating
63 kAIC
Construction size
76 x 442 mm
Packaging type
Standard
Voltage rating
7.2 kV
Fuse type
WFMH

ETIM for 7.2WFMH7100 Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 100 A
Rated voltage (EF000228) 7.2 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Breaking capacity (EF005617) 0.063 kA
Utilization category according to IEC 60269 (EF002572) Other
Application (EF000041) Motor protection
Length (EF001438) 442 mm
Diameter (EF000551) 76 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) Yes
Standard (EF009322) DIN
Release characteristic (EF000889) Other
Installation technique (EF001474) Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
