7.2KV 63Amp 2" DIN Sealed Fuse 7.2TDLSJ63 7-2TDLSJ63 EATON ELECTRIC Fuse-link, medium voltage, 63 A, AC 7.2 ..

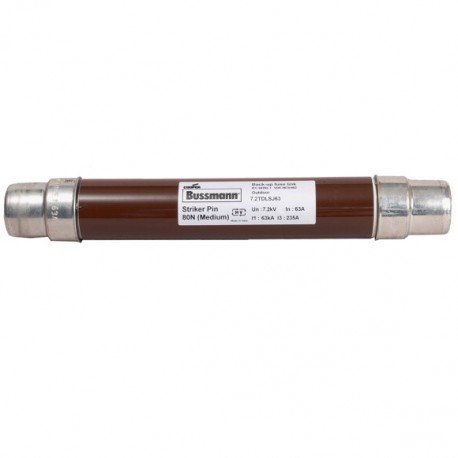

7.2KV 63Amp 2" DIN Sealed Fuse
72TDLSJ63
7-2TDLSJ63
EATON - MOELLER
1 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller 7.2KV 63Amp 2" DIN Sealed Fuse (7.2TDLSJ63) is a medium-voltage fuse-link engineered for high-voltage power networks. Sealed fuses provide dependable overcurrent protection in switchgear assemblies to prevent damage to transformers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 63 A
- Rated voltage (EF000228): 7.2 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 40 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 292 mm
- Diameter (EF000551): 51 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): DIN
- Installation technique (EF001474): Air
More info
▲Delivery program
indoor or outdoor use
VDE 0670-4
VDE 0670-402
IEC 60282-1
