7.2KV 16Amp 2" DIN Sealed Fuse 7.2TDLSJ16 7-2TDLSJ16 EATON ELECTRIC Fuse-link, medium voltage, 16 A, AC 7.2 ..

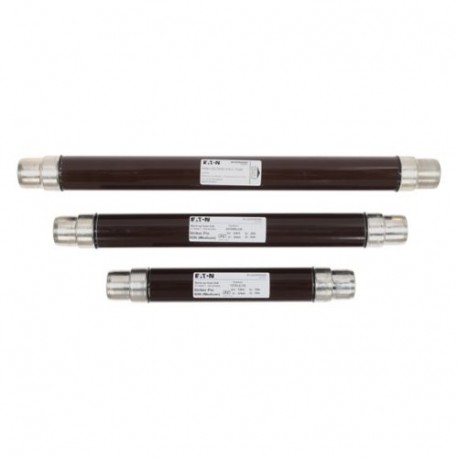

7.2KV 16Amp 2" DIN Sealed Fuse
72TDLSJ16
7-2TDLSJ16
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller 7.2KV 16Amp 2" DIN Sealed Fuse provides dependable medium voltage protection for electrical distribution networks. Sealed DIN fuses are engineered to isolate short circuits and protect critical assets like distribution transformers from unexpected electrical overloads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 16 A
- Rated voltage (EF000228): 7.2 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 40 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 292 mm
- Diameter (EF000551): 51 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): DIN
- Installation technique (EF001474): Air
More info
▲General specifications
VDE 0670-4
IEC 60282-1
Electrical data
Product specifications
Compatible fuse clip
A3354710 Fuse clip
