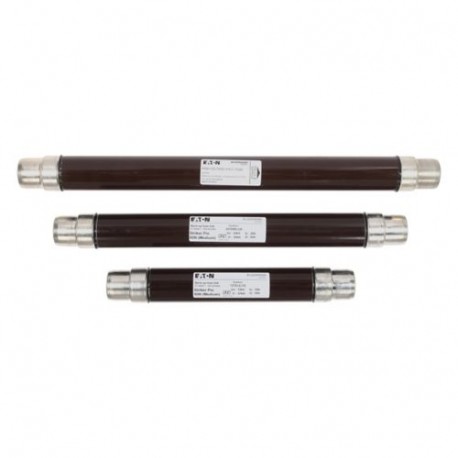

EATON - MOELLER 7.2KV 10Amp 2" DIN Sealed Fuse 7.2KV 10Amp 2" DIN Sealed Fuse 7.2TDLSJ10 7-2TDLSJ10 EATON ELECTRIC Fuse-link, medium voltage, 10 A, AC 7.2 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7.2KV 10Amp 2" DIN Sealed Fuse 7.2TDLSJ10 7-2TDLSJ10 EATON ELECTRIC Fuse-link, medium voltage, 10 A, AC 7.2 ..

7.2KV 10Amp 2" DIN Sealed Fuse

72TDLSJ10

7-2TDLSJ10

EATON - MOELLER

3 Pcs.

Fuse-link, medium voltage, 10 A, AC 7.2 kV, 2", 51 x 292 mm, back-up, DIN, with striker 7.2KV 10Amp 2" DIN Sealed Fuse 7.2KV 10Amp 2" DIN Sealed Fuse - Fuse-link, medium voltage, 10 A, AC 7.2 kV, 40 kA, 2", 51 x 292 mm, back-up, DIN, with striker Fuse, Fuse-link, medium voltage, 10 A, AC 7.2 kV, 2z, 51 x 292 mm, Back-up, DIN, with striker, transformer protection, indoor or outdoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
7.2TDLSJ10
EAN
5027590488297
UPC
051712185936
Product Length/Depth
292 mm
Product Height
51 mm
Product Width
51 mm
Product Weight
1630 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1

Electrical data

Amperage Rating
10 A
Voltage rating
7.2 kV
Voltage type
AC
Breaking capacity
40 kA
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Resistance
99.7 Ohms
Watt losses
19 W

Product specifications

Fuse indicator
With Striker
Construction size
51 x 292 mm
Standard
DIN
Standard
DIN
Mounting method
Clip-in

Compatible fuse clip

Used with
270303 Fuse clip
A3354710 Fuse clip

ETIM for 7.2TDLSJ10 Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 10 A
Rated voltage (EF000228) 7.2 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Breaking capacity (EF005617) 40 kA
Utilization category according to IEC 60269 (EF002572) Other
Application (EF000041) Primary side transformer protection
Length (EF001438) 292 mm
Diameter (EF000551) 51 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) Yes
Standard (EF009322) DIN
Release characteristic (EF000889) Other
Installation technique (EF001474) Air
