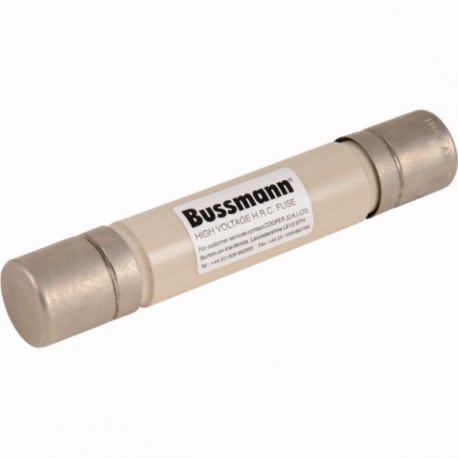

EATON - MOELLER 7-2OBWN223-15 7-2OBWN223-15 7.2OBWN223.15 7.2KV 3.15A VT FUSE 7.2OBWN223.15 EATON ELECTRIC VT fuse-link, medium voltage, 3.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7-2OBWN223-15 7.2OBWN223.15 7.2KV 3.15A VT FUSE 7.2OBWN223.15 EATON ELECTRIC VT fuse-link, medium voltage, 3..

7-2OBWN223-15

72OBWN22315

7.2KV 3.15A VT FUSE 7.2OBWN223.15

EATON - MOELLER

20 Pcs.

VT fuse-link, medium voltage, 3 A, AC 24 kV, 21 x 359 mm, back-up, BS, style N tags cartridge fuse VT, MT, 3.15 A, AC 7.2 kV, 142 x 25.4 mm, back-up, BS, IEC 7.2KV 3.15A VT FUSE - VT fuse-link, medium voltage, 3.15 A, AC 7.2 kV, 142 x 25.4 mm, back-up, BS, IEC, style 22 tags Fuse, VT fuse-link, medium voltage, 3.15 A, AC 7.2 kV, 142 x 25.4 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, Breaking Capacity 45 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller 7-2OBWN223-15 voltage transformer fuse-link is designed to protect low-current instrumentation circuits in medium voltage grids. VT fuses safeguard potential transformers against overcurrent events and internal faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 3.15 A
  • Rated voltage (EF000228): 7.2 kV
  • Voltage type (EF000187): AC
  • Length (EF001438): 161 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): No
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Oil

More info

▲
VT fuse-link, medium voltage, 3.15 A, AC 7.2 kV, 142 x 25.4 mm, back-up, BS, IEC, style 22 tags
Fuse, VT fuse-link, medium voltage, 3.15 A, AC 7.2 kV, 142 x 25.4 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, Breaking Capacity 45 kA

Delivery program

Product range
Fuse
Basic function
VT fuse-link
Field of application
medium voltage
Rated current [I]
3.15 A
Rated voltage
AC 7.2 kV
Size
142 x 25.4 mm
Utilization category
back-up
Breaking Capacity
45 kA
usable for size/applications
voltage and auxiliary transformers
Standard/Approval
BS
IEC
Shape
cylindrical
Standards/Regulations
BS2692-1
IEC 60282-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
3.15 A
Rated voltage
7.2 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
45 kA
Utilization category
Other
Application
Auxiliary transformer protection
Length
142 mm
Diameter
25.4 mm
Performance category according to IEC 60282-1
Back-up
With striker
No
Standard
British Standard
Release characteristic
Other
Installation technique
Oil

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
