EATON - MOELLER NH FUSE 63A 400V GG/GL SIZE 000 NH FUSE 63A 400V GG/GL SIZE 000 63NHG000B-400 BUSSMANN 63A 400V GG 000 63NHG000B-400 EATON ELECTRIC Fuse-lin.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 63A 400V GG/GL SIZE 000 63NHG000B-400 BUSSMANN 63A 400V GG 000 63NHG000B-400 EATON ELECTRIC Fuse-lin..

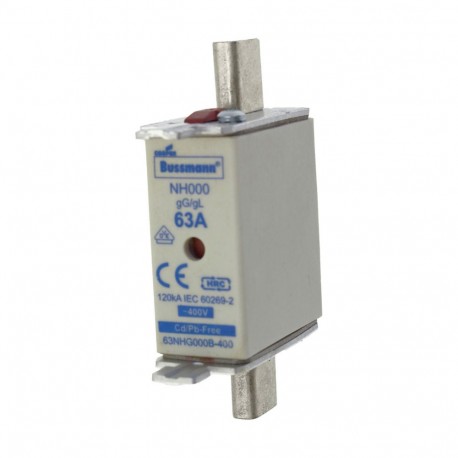

NH FUSE 63A 400V GG/GL SIZE 000

63NHG000B400

BUSSMANN 63A 400V GG 000 63NHG000B-400

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 10 A, AC 400 V, NH000, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 63A 400V GG/GL SIZE 000 NH FUSE 63A 400V GG/GL SIZE 000 - Fuse-link, low voltage, 63 A, AC 400 V, 120 kA, NH000, gL/gG, IEC, dual indicator, live gripping lugs Fuse, fuse-link, low voltage, 63 A, AC 400 V, NH000, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Fuse-link, low voltage, 63 A, AC 400 V, 120 kA, NH000, gL/gG, IEC, dual indicator, live gripping lugs
Fuse, fuse-link, low voltage, 63 A, AC 400 V, NH000, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
low voltage
Rated current [I]
63 A
Rated voltage
AC 400 V
Construction size
NH000
Utilization category
gL/gG
Status indicator
dual indicator
Description
live gripping lugs
Breaking Capacity
120 kA
usable for size/applications
industrial
Standard/Approval
IEC
Shape
square body with knife blade contacts
Standards/Regulations
IEC 60269-2 fuse system A
DIN 43620
VDE 0636-2

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
NH000
Rated current
63 A
Rated voltage
400 V
Voltage type
AC
Rated switching capacity
120 kA
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No

ETIM for 63NHG000B-400 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH000
Voltage type (EF000187) AC
Rated current (EF000227) 63 A
Rated voltage AC (EF007682) 400 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
Power loss at rated current (EF012389) 4.5 W
