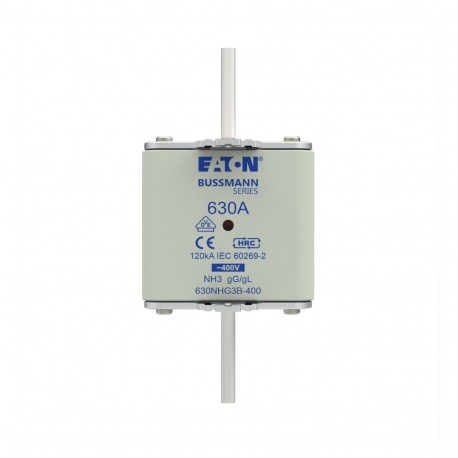

EATON - MOELLER NH FUSE 630A 400V 3 GG/GL SIZE 3 NH FUSE 630A 400V 3 GG/GL SIZE 3 630NHG3B-400 EATON ELECTRIC Fuse-link with blink application, D01, 1A, 400 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 630A 400V 3 GG/GL SIZE 3 630NHG3B-400 EATON ELECTRIC Fuse-link with blink application, D01, 1A, 400 ..

NH FUSE 630A 400V 3 GG/GL SIZE 3

630NHG3B400

630NHG3B-400

EATON - MOELLER

3 Pcs.

NH FUSE 630A 400V 3 GG/GL SIZE 3 Fuse-link, LV, 630 A, AC 400 V, NH3, gL/gG, IEC, dual indicator, live gripping lugs Fuse, fuse-link, low voltage, 630 A, AC 400 V, NH3, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial fuse-links provide critical circuit protection by safely disconnecting high-amperage electrical faults before they can damage machinery or cause hazards. The Eaton Moeller NH FUSE 630A 400V 3 GG/GL SIZE 3 is built for heavy-duty main distribution boards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH3
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 630 A
  • Rated voltage AC (EF007682): 400 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 36 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
630NHG3B-400
EAN
5027590484886
Product Length/Depth
150 mm
Product Height
86 mm
Product Width
71 mm
Product Weight
1140 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
630 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH3
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD3-D Single pole NH Fuse base
TD3-D Tripe pole NH Fuse base
Microswitch 170H0235
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
