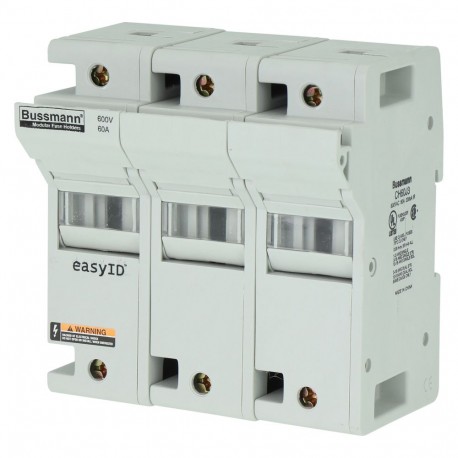

EATON - MOELLER 60AJ MODULAR FUSEHOLDER 3 POLE 60AJ MODULAR FUSEHOLDER 3 POLE CH60J3 EATON ELECTRIC Fuse-holder, low voltage, 60 A, AC 600 V, DC 600 V, UL .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

60AJ MODULAR FUSEHOLDER 3 POLE CH60J3 EATON ELECTRIC Fuse-holder, low voltage, 60 A, AC 600 V, DC 600 V, UL ..

60AJ MODULAR FUSEHOLDER 3 POLE

CH60J3

CH60J3

EATON - MOELLER

2 Pcs.

Fuse-holder, low voltage, 60 A, AC 600 V, DC 600 V, UL Class J, 120 x 83 x 125 mm, 3P, UL, CSA 60AJ MODULAR FUSEHOLDER 3 POLE Fuse holder, low voltage, 60 A, AC 600 V, DC 600 V, 200 kA, 120 x 83 x 125 mm, J, 3P, UL, CSA, 35 mm DIN rail, Panel Mounting

Automation > Low Voltage HRC fuse base
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 60AJ MODULAR FUSEHOLDER 3 POLE by Eaton Moeller is a low voltage fuse-holder built to accommodate three-phase industrial cartridge fuses securely. In heavy-duty electrical enclosures, these modular holders provide robust mechanical support and reliable circuit protection across multiple phases simultaneously. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: 60AJ MODULAR FUSEHOLDER 3 POLE
  • Catalogue code: CH60J3
  • Catalogue title: 60AJ MODULAR FUSEHOLDER 3 POLE CH60J3 EATON ELECTRIC Fuse-holder, low voltage, 60 A, AC 600 V, DC 600 V, UL ..
  • Product description: Fuse holder, low voltage, 60 A, AC 600 V, DC 600 V, 200 kA, 120 x 83 x 125 mm, J, 3P, UL, CSA, 35 mm DIN rail, Panel Mounting Fuse accessory, Fuse-holder, low voltage, 60 A, AC 600 V, DC 600 V, UL Class J, 120 x 83 x 125
  • Manufacturer summary: Fuse-holder, low voltage, 60 A, AC 600 V, DC 600 V, UL Class J, 120 x 83 x 125 mm, 3P, UL, CSA 60AJ MODULAR FUSEHOLDER 3 POLE Fuse holder, low voltage, 60 A, AC 600 V, DC 600 V, 200 kA, 120 x 83 x 125 mm, J, 3P, UL, CSA,

More info

▲
Fuse holder, low voltage, 60 A, AC 600 V, DC 600 V, 200 kA, 120 x 83 x 125 mm, J, 3P, UL, CSA, 35 mm DIN rail, Panel Mounting
Fuse accessory, Fuse-holder, low voltage, 60 A, AC 600 V, DC 600 V, UL Class J, 120 x 83 x 125 mm, 3P, UL, CSA, 35 mm DIN rail, Panel Mounting, Class J fuses up to 60 A, UL 512, IP20, Breaking Capacity 200 kA

Delivery program

Product range
Fuse accessory
Basic function
Fuse-holder
Field of application
low voltage
Rated current [I]
60 A
Rated voltage
AC 600 V
DC 600 V
Size
120 x 83 x 125 mm
Utilization category
J
Description
35 mm DIN rail
Panel Mounting
Protection
IP20
Breaking Capacity
200 kA
Number of poles
3P
usable for size/applications
Class J fuses up to 60 A
Standard/Approval
UL
CSA
Standards/Regulations
UL 512

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse base (EC000067)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Low-Voltage HRC fuse base ([email protected] [AKE278013])
Construction size
Other
Number of poles
3
Rated current
60 A
Bus-mounting type
No
Swivelling mechanism
No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
