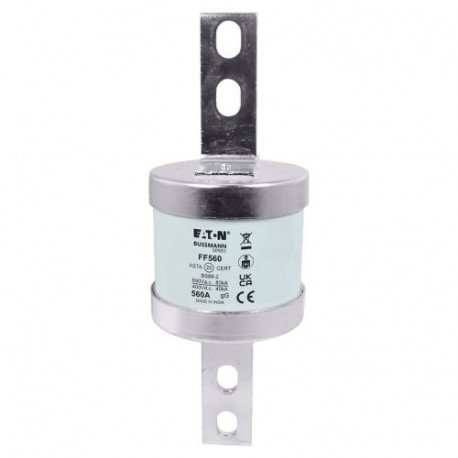

EATON - MOELLER 560AMP 690V AC / 400V DC 560AMP 690V AC / 400V DC FF560 EATON ELECTRIC Fuse-link, low voltage, 560 A, AC 550 V, DC 400 V, BS88/C2, 74.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

560AMP 690V AC / 400V DC FF560 EATON ELECTRIC Fuse-link, low voltage, 560 A, AC 550 V, DC 400 V, BS88/C2, 74..

560AMP 690V AC / 400V DC

FF560

FF560

EATON - MOELLER

1 Pcs.

Fuse-link, low voltage, 560 A, AC 550 V, DC 400 V, BS88/C2, 74 x 210 mm, gL/gG, BS 560AMP 690V AC / 400V DC

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Eaton Moeller, the 560AMP 690V AC / 400V DC is a low voltage fuse-link designed to protect electrical installations and distribution boards against overcurrent conditions. In industrial circuits, components of this classification are typically deployed to interrupt excessive current safely and prevent downstream equipment damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Brand: Eaton Moeller
  • Part Number: 560AMP 690V AC / 400V DC
  • Catalogue Code: FF560

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage british standard fuse
Catalog Number
FF560
EAN
5027590019910
UPC
051712839914
Product Length/Depth
209 mm
Product Height
74 mm
Product Width
74 mm
Product Weight
1053 g
Compliances
RoHS Compliant

Electrical data

Amperage Rating
560 A
Voltage rating
690 V
Voltage type
AC/DC
Breaking capacity
80 kA
Class
Class gG/gL

Product specifications

Fuse type
FF
Fitted with:
Centre bolted tags
Construction
BS88/C2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
