5.5KV USA RATED FUSE 5.5VFNHA2R 5-5VFNHA2R EATON ELECTRIC Motor cartridge fuse, MT, 70 A, AC 5.5 kV, 76 x 40..
5.5KV USA RATED FUSE
55VFNHA2R
5-5VFNHA2R
EATON - MOELLER
1 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

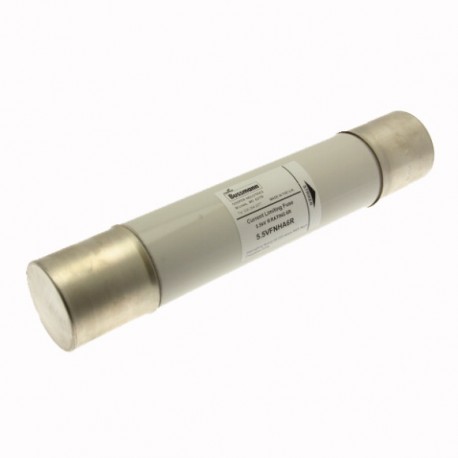

Manufactured to North American electrical standards, the Eaton Moeller 5.5KV USA RATED FUSE is a motor cartridge fuse built for medium voltage applications. Heavy industrial motor circuits employ these components to safely interrupt high-magnitude fault currents and protect drive systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 70 A
- Rated voltage (EF000228): 5.5 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 60 Hz
- Breaking capacity (EF005617): 60 kA
- Application (EF000041): Motor protection
- Length (EF001438): 403 mm
- Diameter (EF000551): 76 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): IEEE
- Release characteristic (EF000889): R
- Installation technique (EF001474): Air
